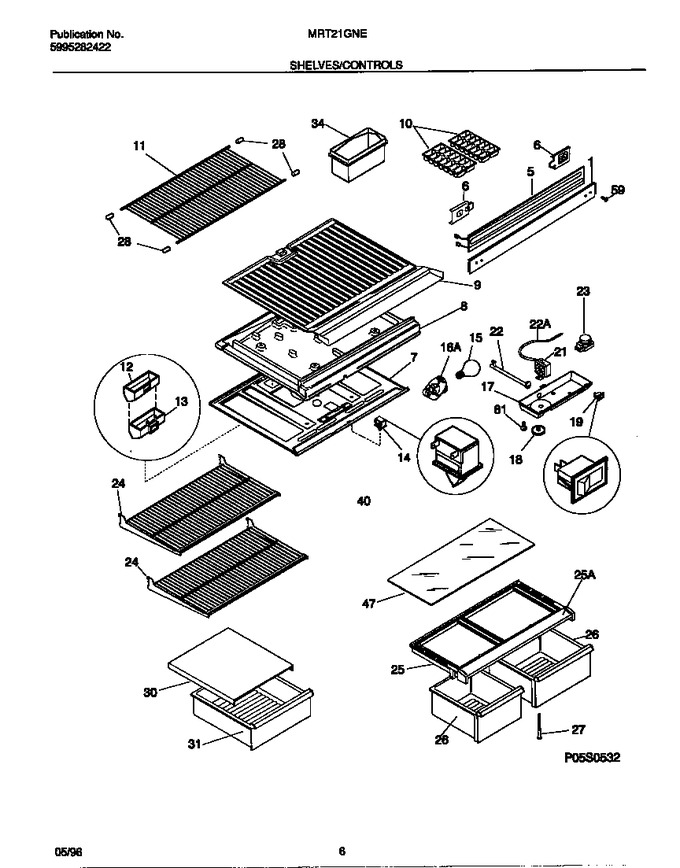

04 - Shelves/controls
05 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218651900 | Mullion, White |
|
- | |||||
| 5 | 218271402 | Heater-mullion |
|
- | |||||
| 6 | 218279800 | Tapping Plate, Mullion Mtg, (2) |
|
- | |||||
| 9 | 5303210641 | Bottom Panel-frzr |
|
- | |||||
| 10 | 215667501 | Tray-ice, Plastic |
|
Immediately | $ 6.07 | ||||
| 12 | 218630800 | Deflector-air |
|
- | |||||
| 13 | 218631001 | Cover-air Deflector |
|
$ 55.19 | |||||
| 14 | 5309918806 | Switch-light/lamp |
|
Immediately | $ 21.97 | ||||
| 15 | 5303001179 | Light Bulb/lamp,40 W |
|
- | |||||
| 16 | 218906802 | Socket-light/lamp (Replaces: 5308000815) |
|
$ 17.72 | |||||
| 18 | 5303311079 | Knob-temp Control |
|
- | |||||
| 19 | 5303286905 | Switch-energy Saver, Rocker Type |
|
$ 27.08 | |||||
| 22 | 5303916855 | Insulator, Plastic Tubing, Temp Sensor |
|
$ 60.96 | |||||
| 22 | 3018891 | Housing-temp Sensor, Plastic |
|
- | |||||
| 24 | 5303209082 | Shelf, Cantilever, Full Width, Wire |
|
$ 173.41 | |||||
| 25 | 5303206538 | Cover-crisper Pan |
|
- | |||||
| 25 | 5303280075 | Trim-crisper Cover |
|
- | |||||
| 27 | 5303205987 | Support-crspr Cover, Adjustable |
|
$ 48.41 | |||||
| 28 | 3201150 | End Cap-shelf,protector |
|
$ 4.57 | |||||
| 30 | 08009763 | Cover-meat Pan |
|
$ 102.27 | |||||
| 31 | 5303305616 | Pan-meat |
|
- | |||||
| 34 | 3018945 | Container-ice |
|
- | |||||
| 47 | 5303209283 | Insert-pan Cover, Glass |
|
- | |||||
| 59 | 240442708 | Screw-hinge/mullion, Cr Pan Head, 10-32 X 5/8, Thread Fo (Replaces: 218188000) |
|
$ 8.34 | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 11A | 5303288243 | Shelf-freezer, Fixed/flat, Full Width, Wire |
|
- | |||||
| 11B | 218159700 | Spacer-shelf (not Illustrated) |
|
- | |||||
| 17A | 5303307349 | Control Box |
|
- | |||||
| 17B | 5308016567 | Nut, Anchor (not Illustrated) |
|
- | |||||
| 21A | 5303303674 | Control-temperature |
|
$ 163.75 | |||||
| 21B | 5303001260 | Screw |
|
$ 6.73 | |||||
| 23A | 215846602 | Timer (Replaces: 215267800) |
|
Immediately | $ 28.20 | ||||
| 23B | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 26A | 215791924 | Pan-crisper, 11.35`` Wide |
|
- | |||||
| 26B | 5303304670 | Pan Crisper, 14.35`` Wide |
|
- | |||||
| 7A | 3019038 | Top Panel-refr |
|
- | |||||
| 7B | 5303001380 | Screw |
|
- | |||||
| 8A | 5303019039 | Divider, Styrofoam |
|
- | |||||
| 8B | 3019040 | Harness-wiring, Control/divider (not Illustrated) |
|
- | |||||
| 8C | 3205266 | Edge Protector (not Illustrated) |
|
$ 80.09 |
