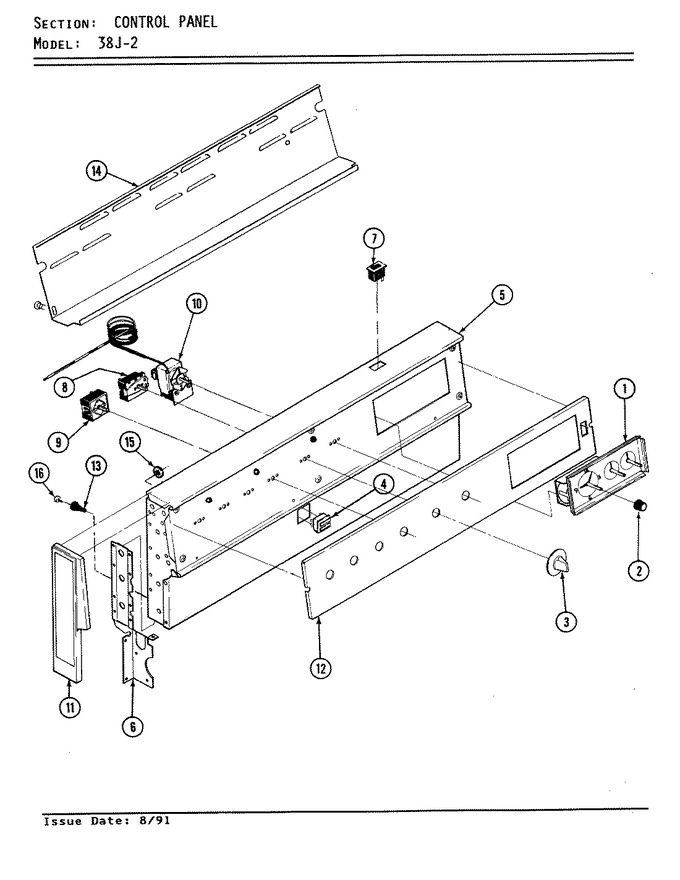

03 - Control Panel
04 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7112P007-60 | Clip | 01 |
|
- | ||||
| 1 | 7902P109-60 | Glass, Clock | 01 |
|
- | ||||
| 1 | 7601P131-60 | Clock | 01 |
|
- | ||||
| 2 | 7711P007-60 | Knob, Clock | 17 |
|
- | ||||
| 2 | 7711P126-60 | Knob, Clock | 01 |
|
- | ||||
| 3 | 7739P025-60 | Knob | 01 |
|
- | ||||
| 3 | 7737P021-60 | Knob | 01 |
|
$ 26.24 | ||||
| 3 | 7739P027-60 | Knob, Therm | 15 |
|
- | ||||
| 3 | 7735P027-60 | Knob | 15 |
|
- | ||||
| 4 | 7407P067-60 | Light, Signal | 01 |
|
- | ||||
| 4 | 7407P073-60 | Lamp, Signal Lock | 01 |
|
- | ||||
| 4 | 7405P016-60 | Male Pin Terminal | 01 |
|
- | ||||
| 4 | 7405P086-60 | Terminal, Indicator Light | 01 |
|
- | ||||
| 5 | 2601W343-81 | Backguard Assy (white) | 15 |
|
- | ||||
| 5 | 2601W180-81 | Panel, Bkgd White | 01 |
|
- | ||||
| 6 | 3807F349-51 | Support, Bkgd End Rt | 01 |
|
- | ||||
| 6 | WPW10068250 | Screw (Replaces: 7101P074-60) | 01 |
|
$ 3.66 | ||||
| 6 | 3807F348-51 | Support, Bkgd End Lf | 01 |
|
- | ||||
| 7 | 7403P067-60 | Switch, Rocker (blk) (Replaces: 7403P102-60) | 01 |
|
$ 91.35 | ||||
| 8 | 7403P081-60 | Switch, Selector | 01 |
|
- | ||||
| 9 | 7403P183-60 | Switch, Inf. 250v | 01 |
|
- | ||||
| 9 | 7403P268-60 | Switch, Infinite (1400w) | 27 |
|
- | ||||
| 9 | 7403P269-60 | Switch, Infinite (2600w) | 27 |
|
- | ||||
| 9 | 7101P280-60 | Screw W/washer (blk) | 01 |
|
- | ||||
| 10 | 7404P071-60 | Thermostat | 15 |
|
- | ||||
| 10 | 7404P052-60 | Thermostat | 01 |
|
- | ||||
| 11 | 7726P031-60 | Trim, Bkgd End (lt) | 01 |
|
- | ||||
| 11 | 7726P032-60 | Trim, Bkgd End (rt) | 01 |
|
- | ||||
| 12 | 7720P088-60 | Trim, Glass Ret | 01 |
|
- | ||||
| 12 | 7703P239-60 | Trim, Backguard | 01 |
|
- | ||||
| 12 | 7101P008-60 | Screw | 01 |
|
- | ||||
| 12 | 7703P243-60 | Insert Bkgd Trim | 15 |
|
- | ||||
| 13 | 8010P069-60 | Spacer, Hinge (main Top) | 01 |
|
$ 8.57 | ||||
| 13 | 7105P002-60 | Support, Main Top | 01 |
|
- | ||||
| 14 | 4005F283-80 | Cover, Shield Bkgd Wire | 01 |
|
- | ||||
| 15 | 7103P053-60 | Nut, Push-on End Cap | 01 |
|
- | ||||
| 16 | W11164114 | Screw (Replaces: 7101P162-60) | 01 |
|
$ 3.76 |
