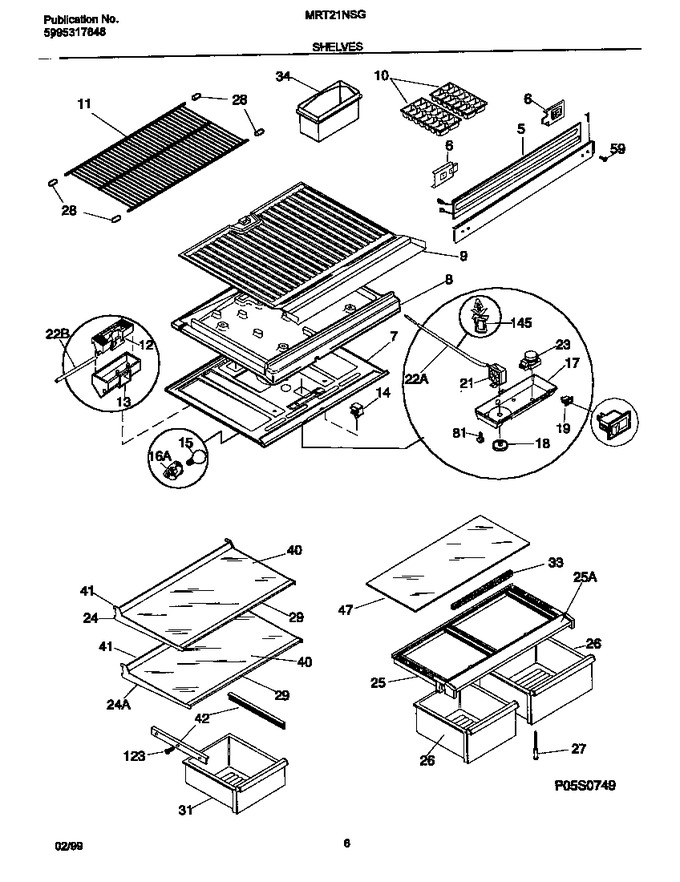

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218651901		Mullion, Almond		Appelez-nous	-
5	218781002		Heater-mullion		Appelez-nous	-
6	218845602		Tapping Plate,mullion Mtg				$ 14.86
7	218866101		Top Panel-refr		Appelez-nous	-
8	218866000		Divider,styrofoam		Appelez-nous	-
9	218865900		Bottom Panel-frzr				$ 43.29
10	215667501		Tray-ice,plastic (optiional Accessory)			Immediately	$ 6.07
11	5303288243		Shelf-freezer, Fixed/flat, Full Width, Wire		Appelez-nous	-
12	218730000		Deflector-air				$ 57.60
13	218631001		Cover-air Deflector				$ 55.19
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
16	218906802		Socket-light/lamp   (Replaces: 218906801)				$ 17.72
17	5303321455		Control Box				$ 46.16
18	5303311079		Knob-temp Control		Appelez-nous	-
19	5303286905		Switch-energy Saver, Rocker Type				$ 27.08
21	5304404821		Control-temperature   (Replaces: 5304403736)			Immediately	$ 164.57
22	218731104		Tube, Pvc, White, @ Air Deflector, Insulator				$ 35.64
22	5303916855		Tube, Plastic, Clear, Sensor Sleeve				$ 60.96
23	215846602		Timer-defrost   (Replaces: 215846606)			Immediately	$ 28.20
24	215919118		Frame-full Shelf, Cantilever		Appelez-nous	-
24	215919123		Frame-pan Mtg Shelf,cantilever ,full Width,w/hanger Tabs		Appelez-nous	-
25	5303206538		Cover-crisper Pan		Appelez-nous	-
25	5303280075		Trim-crisper Cover		Appelez-nous	-
27	5303205987		Support-crisper Cvr, Adjustable				$ 48.41
28	3201150		End Cap-shelf,protector ,frzr Shelf				$ 4.57
29	215919459		Trim-glass Shelf, 26.80``, Front		Appelez-nous	-
31	5303284461		Pan-meat		Appelez-nous	-
33	5303200329		Gasket-pan Cover, 13.25``, Rh		Appelez-nous	-
34	3018945		Container-ice		Appelez-nous	-
40	218390544		Glass-shelf, 26.76`` X 15.57``		Appelez-nous	-
41	215919805		Trim-glass Shelf, 26.80``, Rear		Appelez-nous	-
47	218390553		Insert-pan Cover, 25.23`` X 10.50``, Glass		Appelez-nous	-
59	240442708		Screw,pan Hd ,10-32 X 0.625 ,hinge/mullion,thread Formin   (Replaces: 218188000)				$ 8.34
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
123	215005101		Screw-roller/hanger,8-10 X .438   (Replaces: 215005100)				$ 14.89
145	218660800		Clip, Plastic, Temp Sensor Mtg, Snap-in		Appelez-nous	-
*30533	5303001380		Screw		Appelez-nous	-
*30534	218878600		Harness-wiring,control/divider		Appelez-nous	-
*30535	218159700		Spacer-shelf		Appelez-nous	-
*30536	5308016567		Nut-anchor		Appelez-nous	-
*30537	5303001260		Screw				$ 6.73
*30538	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
*30539	3205266		Edge Protector, Wiring Harness				$ 80.09
*30540	218755000		Service Data Sheet		Appelez-nous	-
26A	5303290369		Pan-crisper, 14.35`` Wide		Appelez-nous	-
26B	5303290770		Pan-crisper, 11.35`` Wide				$ 172.62
42A	5303209272		Hanger-pan/basket, Lh				$ 90.83
42B	5303209273		Hanger-pan/basket, Rh				$ 60.06
