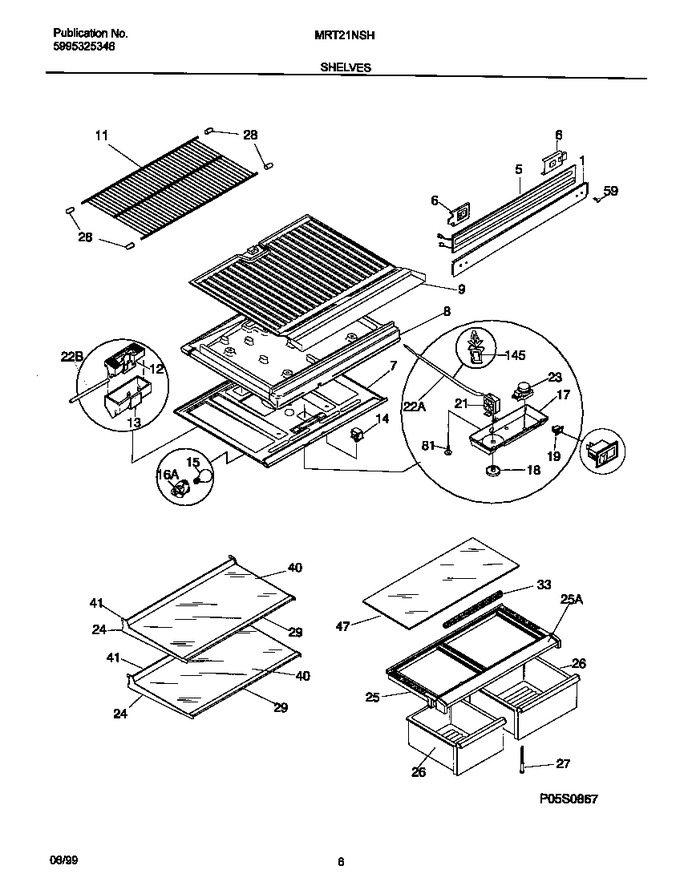

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218651901		Mullion, Almond		Appelez-nous	-
5	218781002		Heater-mullion		Appelez-nous	-
6	218845602		Tapping Plate,mullion Mtg				$ 14.86
7	218866101		Top Panel-refr		Appelez-nous	-
8	218909702		Divider,styrofoam ,w/foil Tape		Appelez-nous	-
9	218865900		Bottom Panel-frzr				$ 43.29
11	5303291413		Shelf-freezer, ``table Type``		Appelez-nous	-
12	218730000		Deflector-air				$ 57.60
13	218631001		Cover-air Deflector				$ 55.19
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
16	218906802		Socket-light/lamp   (Replaces: 218906801)				$ 17.72
17	5303321455		Control Box				$ 46.16
18	5303311079		Knob-temp Control		Appelez-nous	-
19	5303286905		Switch-energy Saver, Rocker Type				$ 27.08
21	5304404821		Control-temperature   (Replaces: 5304403736)			Immediately	$ 164.57
22	218731104		Tube, Pvc, White, @ Air Deflector, Insulator				$ 35.64
22	5303916855		Tube, Plastic, Clear, Sensor Sleeve				$ 60.96
23	215846602		Timer-defrost   (Replaces: 215846606)			Immediately	$ 28.20
24	215919118		Frame-full Shelf, Cantilever		Appelez-nous	-
25	5303206538		Cover-crisper Pan		Appelez-nous	-
25	5303280075		Trim-crisper Cover		Appelez-nous	-
27	5303205987		Support-crisper Cvr, Adjustable				$ 48.41
28	3201150		End Cap-shelf,protector ,frzr Shelf				$ 4.57
29	215919405		Trim-glass Shelf,26.80`` ,front		Appelez-nous	-
33	5303200329		Gasket-pan Cover, 13.25``, Rh		Appelez-nous	-
40	218390544		Glass-shelf, 26.76`` X 15.57``		Appelez-nous	-
41	215919805		Trim-glass Shelf, 26.80``, Rear		Appelez-nous	-
47	218390553		Insert-pan Cover, 25.23`` X 10.50``, Glass		Appelez-nous	-
59	240442708		Screw,pan Hd ,10-32 X 0.625 ,hinge/mullion,thread Formin   (Replaces: 218188000)				$ 8.34
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
145	218660800		Clip, Plastic, Temp Sensor Mtg, Snap-in		Appelez-nous	-
*66215	5303001380		Screw		Appelez-nous	-
*66216	218878600		Harness-wiring,control/divider		Appelez-nous	-
*66217	5303299664		Spacer-shelf				$ 24.10
*66218	5308016567		Nut-anchor		Appelez-nous	-
*66219	5303001260		Screw				$ 6.73
*66220	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
*66221	215328300		Clip-shelf				$ 14.02
*66222	3205266		Edge Protector, Wiring Harness				$ 80.09
26A	5303290369		Pan-crisper, 14.35`` Wide		Appelez-nous	-
26B	5303290770		Pan-crisper, 11.35`` Wide				$ 172.62
