SELECT A DIAGRAM

01 - Cover

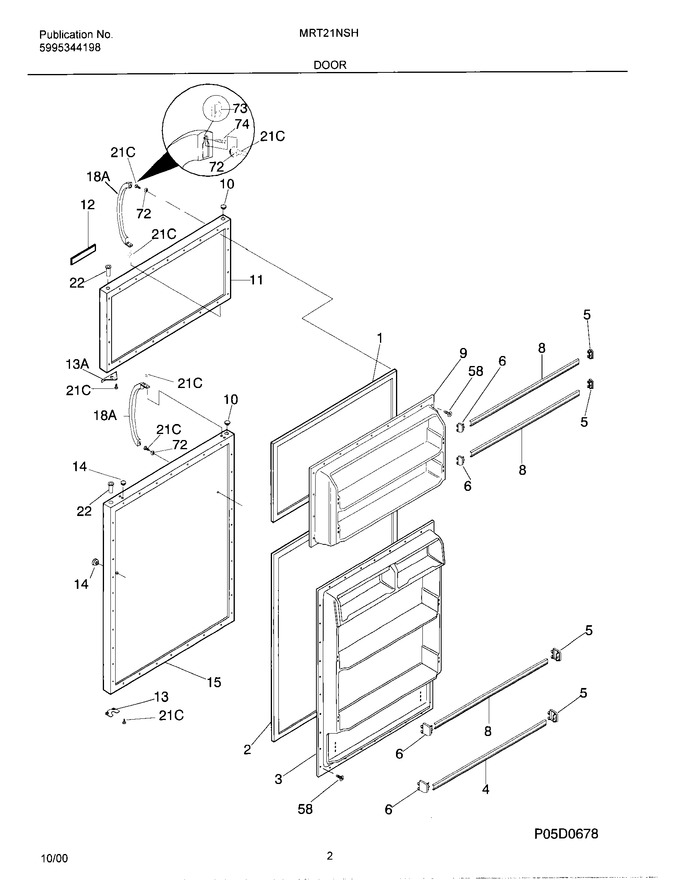

03 - Door


05 - Cabinet


07 - Shelves


09 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608913		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
2	218730609		Gasket-refr Door, White, Magnetic				$ 207.27
3	218658903		Panel-inner Door,refr		Appelez-nous	-
4	5303281387		Rack-door, 25.25`` X 1.58``		Appelez-nous	-
5	5303007295		Support-door Rack, Rh				$ 32.55
6	5303007297		Support-door Rack, Lh				$ 64.58
8	5303281388		Rack-door, 25.56`` X 1.58``		Appelez-nous	-
9	5318540802		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303917811		Panel-frzr Door, Almond, W/insulation		Appelez-nous	-
12	316095407		Label-nameplate,o`kieffe		Appelez-nous	-
12	218428202		Frame-nameplate, Almond		Appelez-nous	-
12	215518000		Magnet-nameplate		Appelez-nous	-
13	218800300		Door Stop,plated		Appelez-nous	-
14	218915702		Plug-button,almond		Appelez-nous	-
15	5303917813		Panel-refr Door, Almond, W/insul & Brace		Appelez-nous	-
22	218519300		Bearing-hinge				$ 14.60
58	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
72	218397000		Button-handle Mtg, Dovetail				$ 16.74
73	218396700		Block-handle Mtg, Dovetail			Immediately	$ 45.36
74	215503203		Screw,cr Pan Hd `10-16 X 0.500   (Replaces: 215503200)			Immediately	$ 7.09
	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
13A	218249002		Door Stop, Almond, Frzr Section				$ 47.88
18A	218428102		Handle-door, Almond, W/block & Screw		Appelez-nous	-
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18

    View Diagram in Separate Window       Print Part List
