SELECT A DIAGRAM

01 - Doors


02 - Freezer Compartment


03 - Fresh Food Compartment


04 - Unit Compartment & System

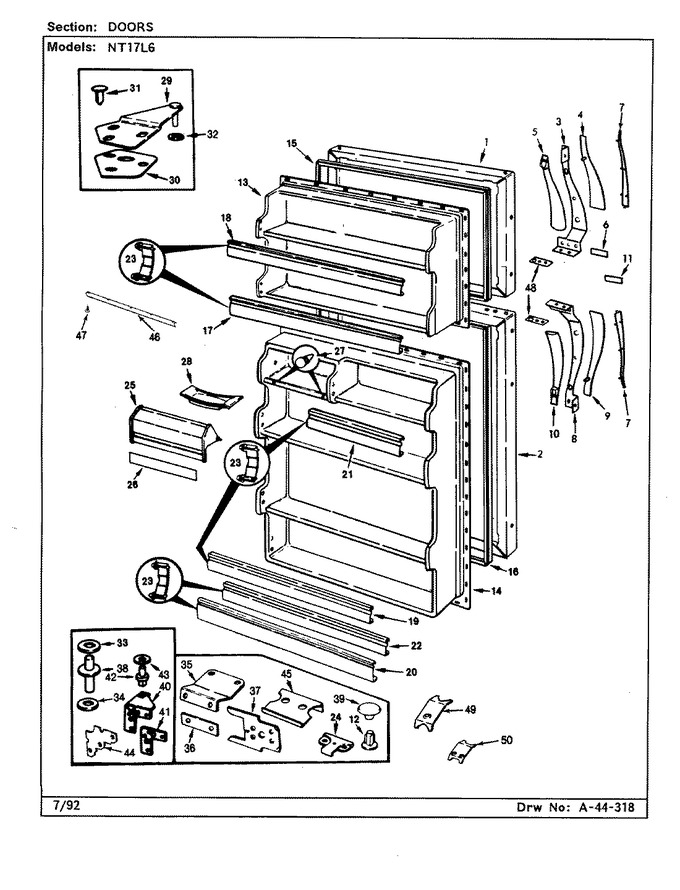

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68472-1-HW		Panel, Frz. Door (hw)		Appelez-nous	-
2	RA95056-1		Door Insulation Kit		Appelez-nous	-
2	68471-1-HW		Panel, F.f. Door (hw)		Appelez-nous	-
3	66255-3		Door Handle		Appelez-nous	-
4	68016-1		Insert, Handle		Appelez-nous	-
5	60445-1		Insert		Appelez-nous	-
6	60603-23		Insert		Appelez-nous	-
7	68017-1		Insert, Vinyl		Appelez-nous	-
8	66255-4		Door Handle		Appelez-nous	-
8	9986-122		Screw		Appelez-nous	-
9	68016-2		Insert, Handle----na		Appelez-nous	-
10	60445-1		Insert		Appelez-nous	-
11	9986-112		Screw		Appelez-nous	-
11	60603-24		Insert		Appelez-nous	-
12	55782-9		Plug Button		Appelez-nous	-
13	65929-13		Liner, Door		Appelez-nous	-
14	65934-14		Liner, F.f. Door		Appelez-nous	-
14	65275-5		Screw		Appelez-nous	-
15	66199-3		Gasket, Door		Appelez-nous	-
16	66199-4		Gasket, Door		Appelez-nous	-
17	66636-36		Shelf Trim		Appelez-nous	-
18	WP61003045		Trim   (Replaces: 68832-3)				$ 129.55
19	WP61003045		Trim   (Replaces: 68832-3)				$ 129.55
20	WP61003045		Trim   (Replaces: 68832-5)				$ 129.55
21	WP61003045		Trim   (Replaces: 68832-6)				$ 129.55
22	WP61003045		Shelf Trim   (Replaces: 66636-35)				$ 129.55
23	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
24	68987-1		Stop, Door		Appelez-nous	-
25	69058-1		Door, Dairy		Appelez-nous	-
26	68128-25		Trim		Appelez-nous	-
27	28272-6		Bumper, Door		Appelez-nous	-
28	29936-2		Tray, Butter		Appelez-nous	-
29	53709-20		Hinge, Upper		Appelez-nous	-
29	WP3-24838-048		Screw   (Replaces: 65275-52)				$ 7.00
30	65031-1		Shim, Upper Hinge		Appelez-nous	-
31	56144-12		Plug Button		Appelez-nous	-
32	54233-1		Washer				$ 7.71
33	67483-1		Washer, Center Hinge (upper)		Appelez-nous	-
34	54233-2		Washer		Appelez-nous	-
35	68811-2		Hinge, Center		Appelez-nous	-
35	65275-55		Screw		Appelez-nous	-
36	68812-1		Shim, Center Hinge		Appelez-nous	-
37	68377-1		Tapping Plate, Center Hinge		Appelez-nous	-
38	67322-1		Pin, Center Hinge		Appelez-nous	-
39	67634-4		Plug Button (hw)		Appelez-nous	-
40	403100-1		Screw		Appelez-nous	-
40	67714-6		Hinge, Lower		Appelez-nous	-
41	60626-1		Shim, Lower Hinge		Appelez-nous	-
42	68788-1		Hinge Pin		Appelez-nous	-
43	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
44	403100-1		Screw		Appelez-nous	-
44	65790-3		Tapping Plate		Appelez-nous	-
45	65275-48		Screw		Appelez-nous	-
45	68988-1		Stop, Door		Appelez-nous	-
46	68544-1		Seal, Secondary		Appelez-nous	-
47	52447-4		Clip		Appelez-nous	-
48	68776-1		Shim Handle----na		Appelez-nous	-
49	56209-3		Clip, Stop Screw		Appelez-nous	-
50	60123-2		Clip, Stop Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
