SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - System And Automatic Defrost Parts

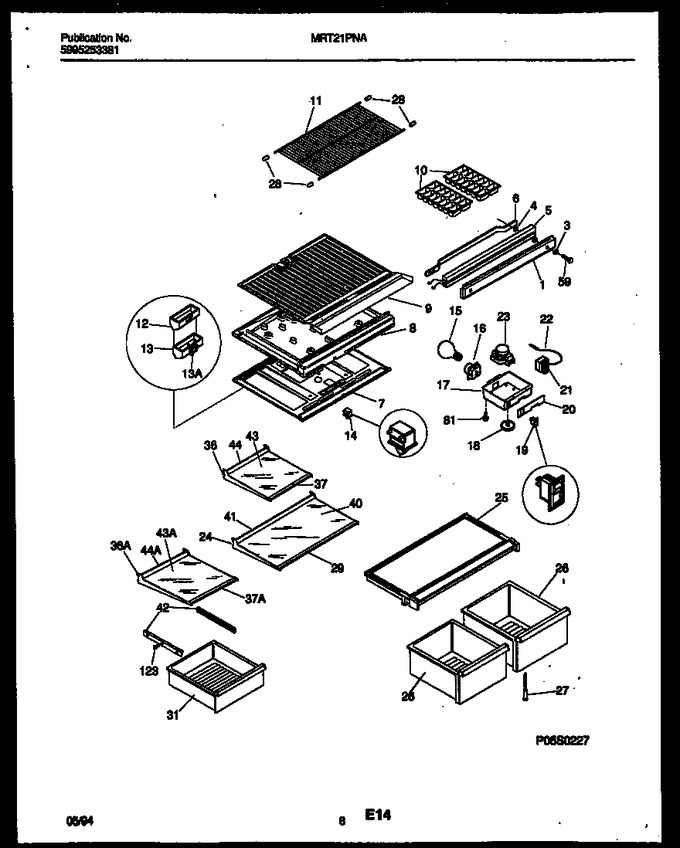

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303200370		Mullion, Almond		Appelez-nous	-
3	5303206754		Washer No. 10 Flat, 7/32 X 7/16 Od, Steel		Appelez-nous	-
4	5303200464		Spacer-mullion Mtg, Steel		Appelez-nous	-
5	5303210351		Heater-mullion		Appelez-nous	-
6	5308010008		Strap-mullion Mtg		Appelez-nous	-
7	5303001651		Top Panel-refr, W/snap Bushing		Appelez-nous	-
8	5308013674		Divider-styrofoam		Appelez-nous	-
9	5303210641		Bottom Panel-frzr		Appelez-nous	-
10	215667501		Tray-ice, Plastic			Immediately	$ 6.07
11	5303288243		Shelf-freezer, Fixed/flat, Full Width, Wire		Appelez-nous	-
12	5308014667		Deflector-air, W/seal		Appelez-nous	-
13	5303001448		Cover-air Deflector		Appelez-nous	-
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
16	5308000129		Socket-light/lamp				$ 62.16
17	5303015152		Box-control		Appelez-nous	-
18	5303300067		Knob-temp Control		Appelez-nous	-
19	5303001670		Switch-energy Saver		Appelez-nous	-
20	215611400		Label-control Box		Appelez-nous	-
21	5303200810		Control-temperature				$ 126.87
22	5303916855		Sleeve-plastic Tube				$ 60.96
23	215846602		Timer   (Replaces: 215267800)			Immediately	$ 28.20
24	215069007		Frame-full Shelf, Cantilever		Appelez-nous	-
25	5303007603		Cover-crisper Pan		Appelez-nous	-
26	5303290369		Pan-crisper, 14.35`` Wide, Rh		Appelez-nous	-
27	5303205987		Support-crisper Cvr, Adjustable				$ 48.41
28	3201150		Cap-protector				$ 4.57
29	5303297450		Trim-shelf, 26.80``, Front		Appelez-nous	-
31	5303304512		Pan-meat		Appelez-nous	-
36	215069006		Frame-half Shelf, Cantilever		Appelez-nous	-
37	215616124		Trim-shelf, 13.07``, Front		Appelez-nous	-
40	215723546		Glass-shelf, 26.76`` X 15.57``		Appelez-nous	-
41	5303300038		Trim-shelf, 26.80``, Rear		Appelez-nous	-
42	5303209272		Hanger-pan/basket, Lh				$ 90.83
43	215723547		Glass-shelf, 13.03`` X 15.57``		Appelez-nous	-
44	5303284472		Trim-shelf, 13.06``, Rear		Appelez-nous	-
59	215097000		Screw-hinge/mullion, Torx Head, 10-24 X 7/8		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
123	08014528		Screw-hanger Mtg, Cr Pan Hd Plask, 8 X 1/2, Meat/deli P				$ 4.31
*10152	5303211351		Lock-shelf Trim, Rear		Appelez-nous	-
*10152	215339900		Clip, Cantilevr Shlf				$ 5.83
12A	5303001449		Seal-air Deflector (non-illustrated)				$ 2.12
13A	5303200590		Extension, Air Deflector, With Insulation		Appelez-nous	-
17A	5308016567		Nut-anchor (non-illustrated)		Appelez-nous	-
21A	5303001260		Screw				$ 6.73
23A	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
26A	5303290770		Pan-crisper, 11.35`` Wide, Lh				$ 172.62
29A	5303209274		Retainer-glass (non-illustrated)		Appelez-nous	-
36A	215069008		Frame-pan Mtg Shelf, Cantilever, Half Width		Appelez-nous	-
37A	5303295981		Trim-shelf, 12.59``, Front		Appelez-nous	-
37B	5303209263		Retainer-glass (non-illustrated)		Appelez-nous	-
42A	5303209273		Hanger-pan/basket, Rh				$ 60.06
43A	215723544		Glass-shelf, 12.55`` X 15.57``		Appelez-nous	-
44A	5303284471		Trim-shelf, 12.59``, Rear		Appelez-nous	-
7A	5303001380		Screw		Appelez-nous	-
7B	5303212518		Bushing, Snap-in, Plastic (non-illustrated)		Appelez-nous	-
8A	3001475		Harness-wiring, Control/divider (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
