SELECT A DIAGRAM

01 - Doors


02 - Freezer Compartment


03 - Fresh Food Compartment


04 - Unit Compartment & System

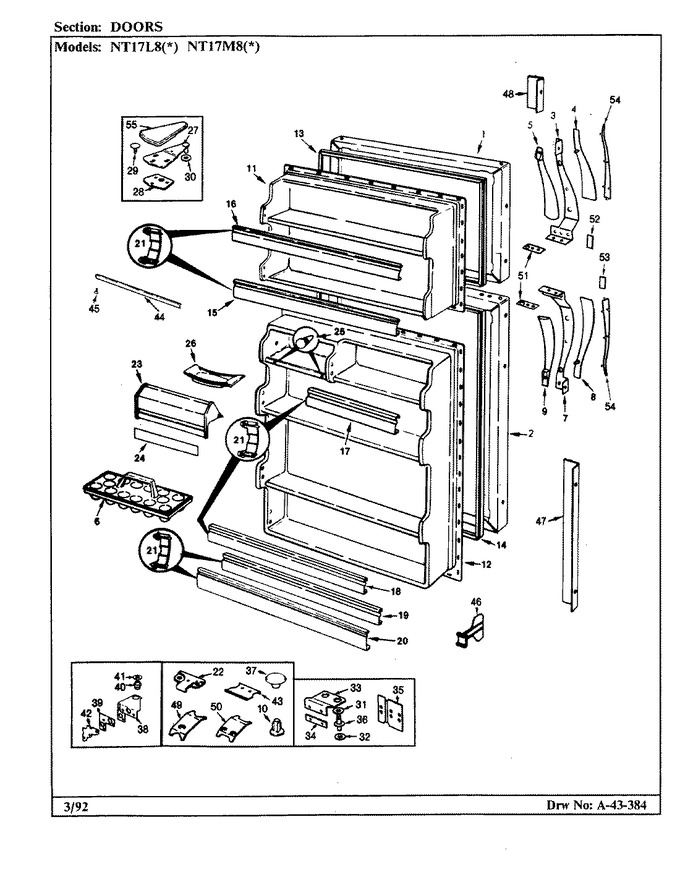

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72044-3-AM		Panel, Frz. Door (alm)		Appelez-nous	-
2	68471-3-AM		Panel, F.f. Door (alm)		Appelez-nous	-
2	RA95056-1		Door Insulation Kit		Appelez-nous	-
3	66255-3		Door Handle		Appelez-nous	-
4	68016-1		Insert, Handle		Appelez-nous	-
5	60445-1		Insert		Appelez-nous	-
6	60066-5		Tray, Egg		Appelez-nous	-
7	66255-4		Door Handle		Appelez-nous	-
7	65275-57		Screw		Appelez-nous	-
8	68016-2		Insert, Handle----na		Appelez-nous	-
9	65275-53		Screw		Appelez-nous	-
9	60445-1		Insert		Appelez-nous	-
10	55782-6		Plug Button (almond)		Appelez-nous	-
11	65929-13		Liner, Door		Appelez-nous	-
12	65934-14		Liner, F.f. Door		Appelez-nous	-
12	65275-5		Screw		Appelez-nous	-
13	66199-3		Gasket, Door		Appelez-nous	-
14	66199-4		Gasket, Door		Appelez-nous	-
15	66636-36		Shelf Trim		Appelez-nous	-
16	WP61003045		Trim   (Replaces: 68832-3)				$ 129.55
17	WP61003045		Trim   (Replaces: 68832-6)				$ 129.55
18	WP61003045		Shelf Trim   (Replaces: 66636-35)				$ 129.55
19	WP61003045		Trim   (Replaces: 68832-3)				$ 129.55
20	WP61003045		Trim   (Replaces: 68832-5)				$ 129.55
21	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
22	60419-10		Door Stop		Appelez-nous	-
23	69058-2		Door, Dairy		Appelez-nous	-
24	W10124350		Not Required Part Or See Note		Appelez-nous	-
25	W10124350		Not Required Part Or See Note		Appelez-nous	-
26	29936-2		Tray, Butter		Appelez-nous	-
27	53709-20		Hinge, Upper		Appelez-nous	-
27	WP3-24838-048		Screw   (Replaces: 65275-52)				$ 7.00
28	65031-1		Shim, Upper Hinge		Appelez-nous	-
29	56144-9		Plug Button, Hinge Screw (alm)		Appelez-nous	-
30	54233-1		Washer				$ 7.71
31	67483-1		Washer, Center Hinge (upper)		Appelez-nous	-
32	54233-2		Washer		Appelez-nous	-
33	68811-2		Hinge, Center		Appelez-nous	-
33	65275-55		Screw		Appelez-nous	-
34	68812-1		Shim, Center Hinge		Appelez-nous	-
35	68377-1		Tapping Plate, Center Hinge		Appelez-nous	-
36	67322-1		Pin, Center Hinge		Appelez-nous	-
37	67634-3		Plug Button, Hinge Cup (alm)		Appelez-nous	-
38	403100-1		Screw		Appelez-nous	-
38	67714-6		Hinge, Lower		Appelez-nous	-
39	60626-1		Shim, Lower Hinge		Appelez-nous	-
40	68788-1		Hinge Pin		Appelez-nous	-
41	67483-4		Washer		Appelez-nous	-
41	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
42	403100-1		Screw		Appelez-nous	-
42	65790-3		Tapping Plate		Appelez-nous	-
43	60030-1		Door Stop		Appelez-nous	-
43	65275-48		Screw		Appelez-nous	-
44	68544-1		Seal, Secondary		Appelez-nous	-
45	56686-5		Clip, Secondary Seal		Appelez-nous	-
46	64097-11		Organizer, Shelf		Appelez-nous	-
47	66702-3		Trim		Appelez-nous	-
48	66702-5		Trim		Appelez-nous	-
48	65275-48		Screw		Appelez-nous	-
49	56209-3		Clip, Stop Screw		Appelez-nous	-
50	60123-2		Clip, Stop Screw		Appelez-nous	-
51	68776-1		Shim Handle----na		Appelez-nous	-
52	60603-23		Insert		Appelez-nous	-
53	60603-24		Insert		Appelez-nous	-
54	68017-1		Insert, Vinyl		Appelez-nous	-
55	65003-3		Cover, Upper Hinge (alm)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
