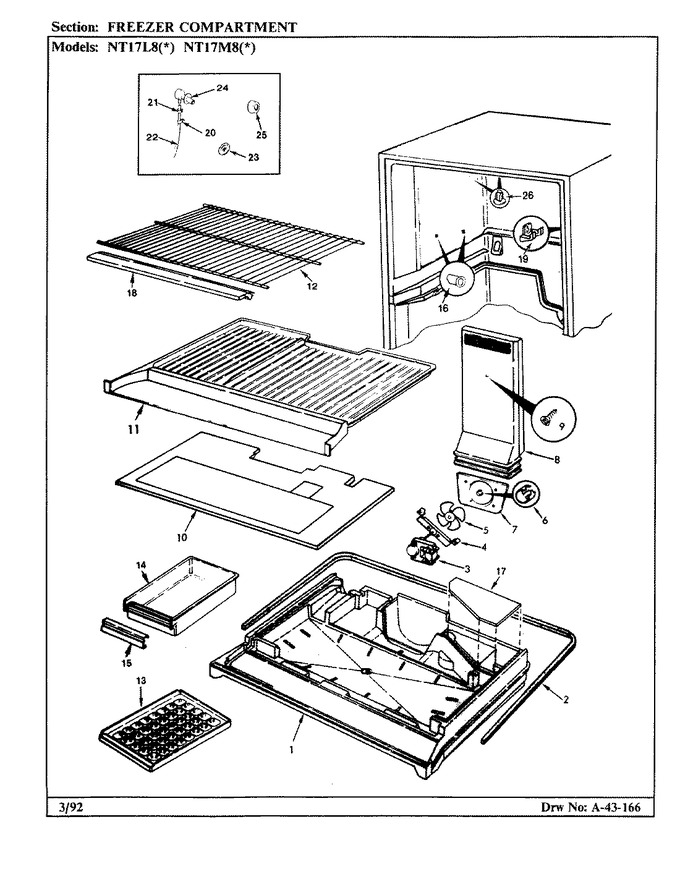

02 - Freezer Compartment
03 - Fresh Food Compartment
04 - Unit Compartment & System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 69123-1 | Divider, Mullion |
|
- | |||||
| 2 | 68866-5 | Seal 72`` |
|
- | |||||
| 2 | 67730-1 | Seal, Front Corner |
|
- | |||||
| 3 | WP61004888 | Motor, Evaporator Fan (Replaces: 54482-10) |
|
Immediately | $ 104.99 | ||||
| 3 | 406062-1 | Screw |
|
- | |||||
| 4 | 400015-12 | Screw |
|
- | |||||
| 4 | 64856-1 | Bracket, Fan Motor |
|
- | |||||
| 5 | 64359-1 | Blade, Evaporator Fan |
|
- | |||||
| 6 | 420092-900 | Washer, Spring |
|
- | |||||
| 7 | 60608-2 | Orifice, Fan Blade |
|
- | |||||
| 8 | 66044-2 | Tunnel, Air |
|
- | |||||
| 8 | 68946-5 | Seal |
|
- | |||||
| 9 | W11233072 | Screw (Replaces: 400015-31) |
|
Immediately | $ 12.62 | ||||
| 10 | 66403-1 | Cover, Evaporator |
|
- | |||||
| 11 | 68946-1 | Seal |
|
- | |||||
| 11 | 66460-1 | Bottom, Frz. |
|
- | |||||
| 12 | 60438-31 | Shelf |
|
- | |||||
| 13 | WP61002140 | Ice Cube Tray (Replaces: 60112-1) |
|
$ 18.23 | |||||
| 14 | 60653-1 | Pan, Ice |
|
- | |||||
| 15 | 60132-101 | Handle, Ice Cube Pan |
|
- | |||||
| 16 | 60313-1 | Cup, Shelf |
|
- | |||||
| 17 | 66480-4 | Cover, Plenum |
|
- | |||||
| 18 | W10124350 | Not Required Part Or See Note |
|
- | |||||
| 19 | 400019-1 | Screw |
|
- | |||||
| 19 | 66101-1 | Stud, Shelf |
|
- | |||||
| 20 | W10124350 | Not Required Part Or See Note |
|
- | |||||
| 21 | W10124350 | Not Required Part Or See Note |
|
- | |||||
| 22 | W10124350 | Not Required Part Or See Note |
|
- | |||||
| 23 | 68187-1 | Cap, Connector |
|
- | |||||
| 24 | 68307-1 | Grommet, Water Entry |
|
- | |||||
| 25 | 68387-1 | Cap, Grommet |
|
- | |||||
| 26 | 66920-2 | Plug Button |
|
- | |||||
| 26 | 67557-1 | Plug Button |
|
- |
