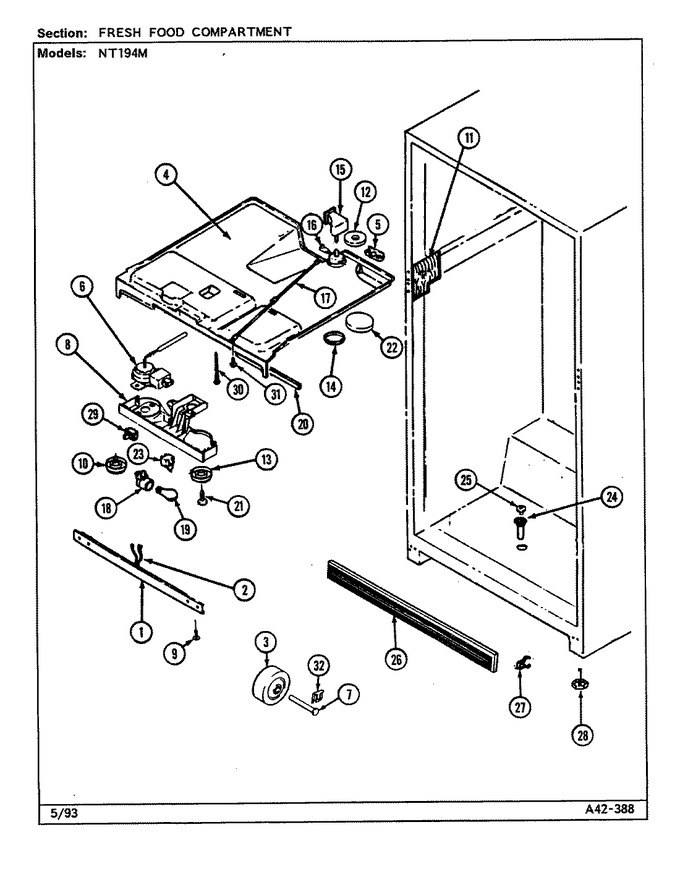

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 69420-2-WW | Channel, Mullion Divider (wht) | 11 |
|
- | ||||
| 2 | 69617-1 | Heater, Divider Channel | 11 |
|
- | ||||
| 3 | 29834-2 | Wheel | 11 |
|
- | ||||
| 3 | 70117-2 | Wire Harness, Mullion | 11 |
|
- | ||||
| 4 | 69409-1 | Top, F.f. Compartment | 11 |
|
- | ||||
| 5 | 69623-1 | Deflector, Air | 11 |
|
- | ||||
| 6 | 400026-36 | Screw | 11 |
|
- | ||||
| 6 | WP68601-6 | Control, Temperature (Replaces: 68119-6) | 11 |
|
Immediately | $ 233.80 | |||
| 7 | 29835-2 | Pin, Wheel | 11 |
|
- | ||||
| 8 | 405012-1 | Screw | 11 |
|
- | ||||
| 8 | 69421-5 | Cover, Temperature Control | 11 |
|
- | ||||
| 9 | 65275-54 | Screw | 11 |
|
- | ||||
| 10 | 69417-9 | Knob, Temperature Control | 11 |
|
- | ||||
| 11 | 69416-2 | Seal, Food Liner (rt) | 11 |
|
- | ||||
| 11 | 69416-1 | Seal, Food Liner (lt) | 11 |
|
- | ||||
| 12 | 68989-1 | Seal, Top Tower | 11 |
|
- | ||||
| 13 | WP61006073 | Knob, Freezer Control (Replaces: 69417-10) | 11 |
|
$ 30.53 | ||||
| 14 | 67493-1 | Cover, Crank | 11 |
|
- | ||||
| 15 | 69811-2 | Orifice Assy., Damper | 11 |
|
- | ||||
| 16 | 67636-1 | Crank, Frz. Control | 11 |
|
- | ||||
| 17 | 69418-3 | Rod, Frz. Control | 11 |
|
- | ||||
| 18 | 68974-3 | Receptacle, Bulb | 11 |
|
- | ||||
| 19 | 40A15 | Bulb, Light (40 Watt) (Replaces: 31956) | 11 |
|
Immediately | $ 1.98 | |||
| 20 | 69413-2 | Magnet | 11 |
|
- | ||||
| 21 | W11233072 | Screw (Replaces: 405016-103) | 11 |
|
Immediately | $ 12.62 | |||
| 22 | 69037-1 | Disc, Crank Cover | 11 |
|
- | ||||
| 23 | W11384469 | Switch, Light (Replaces: 66987-1) | 11 |
|
Immediately | $ 33.51 | |||
| 24 | 54531-8 | Grommet | 11 |
|
- | ||||
| 25 | 65039-1 | Cap, Drain Tube | 11 |
|
- | ||||
| 26 | 69876-2 | Kickplate (black) | 11 |
|
- | ||||
| 27 | 69940-1 | Clip, Kickplate | 11 |
|
- | ||||
| 28 | W11117769 | Leg, Leveling (Replaces: 68664-1) | 11 |
|
Immediately | $ 16.61 | |||
| 29 | 69283-1 | Switch, Heater | 11 |
|
- | ||||
| 30 | 65275-78 | Screw | 11 |
|
- | ||||
| 31 | 420005-1 | Washer, Control Rod | 11 |
|
- | ||||
| 31 | WP59002061 | Screw (Replaces: 65275-13) | 11 |
|
$ 6.98 | ||||
| 32 | 60216-1 | Clip | 11 |
|
- |
