SELECT A DIAGRAM

01 - Cover

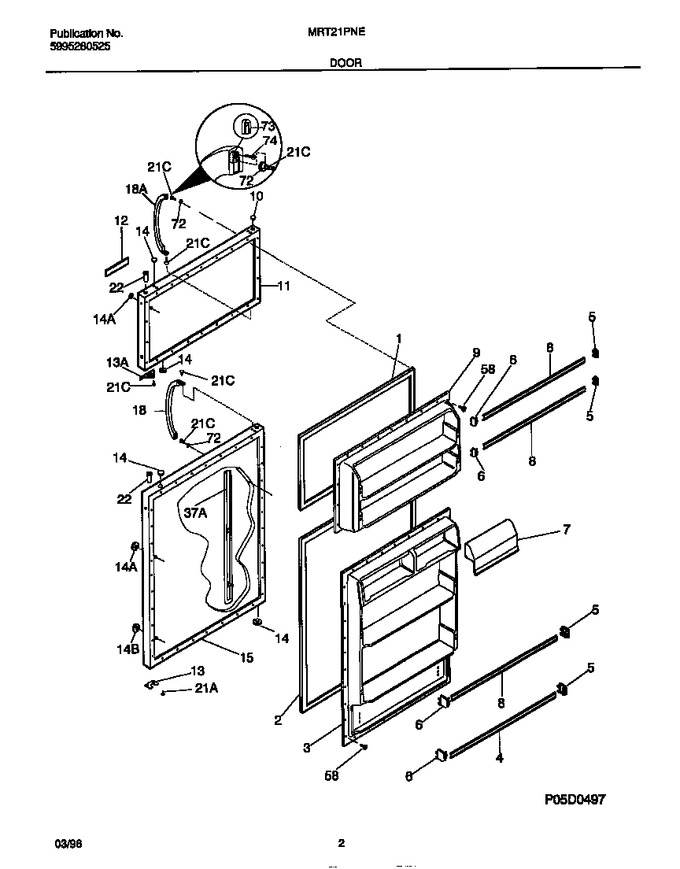

02 - Door


03 - Cabinet


04 - Shelves/controls


05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608913		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
2	215732413		Gasket-refr Door, White, Magnetic		Appelez-nous	-
3	218658901		Panel-inner Door, Refr		Appelez-nous	-
4	215139847		Rack-door, 25.25`` X 1.58``		Appelez-nous	-
5	5303007295		Support-door Rack, Rh				$ 32.55
6	5303007297		Support-door Rack, Lh				$ 64.58
7	5303319067		Door-dairy, 12.19`` Wide		Appelez-nous	-
8	215139848		Rack-door, 25.56`` X 1.58``		Appelez-nous	-
9	5318540802		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303917604		Panel-frzr Door, White, W/insulation		Appelez-nous	-
12	215518000		Magnet-nameplate (not Illustrated)		Appelez-nous	-
12	218428201		Frame-nameplate, White		Appelez-nous	-
13	218249001		Door Stop, White, Frzr Section				$ 82.06
13	5303212491		Door Stop, Refr Section		Appelez-nous	-
14	218074001		Plug-button, White, Refr Door Front				$ 13.76
14	240494001		Plug-button,white ,refr Door Front ,   (Replaces: 215352201)			Immediately	$ 18.20
14	240494001		Plug-button, White, Handle/dr Stop   (Replaces: 5308000090)			Immediately	$ 18.20
15	5303917639		Panel-refr Door, White, W/insulation		Appelez-nous	-
18	218428104		Handle-door, White, W/block & Screw		Appelez-nous	-
18	218428101		Handle-door, White, W/block & Screw			Immediately	$ 22.73
21	218252201		Screw, No. 8 Truss Head, 10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
21	218251900		Screw, No. 8 Oval Head, 10-32 (ca) X 5/8, Cross Recessed				$ 10.55
22	218519300		Bearing-hinge				$ 14.60
37	218397701		Trim-handle, 28.33``, White, With Mtg Locks		Appelez-nous	-
58	5303314236		Screw, Truss/ph Head, 8-18ab X .500		Appelez-nous	-
72	218397000		Button-handle Mtg, Dovetail				$ 16.74
73	218396700		Block-handle Mtg, Dovetail			Immediately	$ 45.36
74	215503203		Screw, Cr Pan Head, 10, 16 X 1/2, Special/hi, Lo   (Replaces: 215503200)			Immediately	$ 7.09
*57360	215940700		Lock-handle Trim, Stick-on		Appelez-nous	-
*57361	215782300		Lock-handle Trim,snap-in				$ 34.49
*57362	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91

    View Diagram in Separate Window       Print Part List
