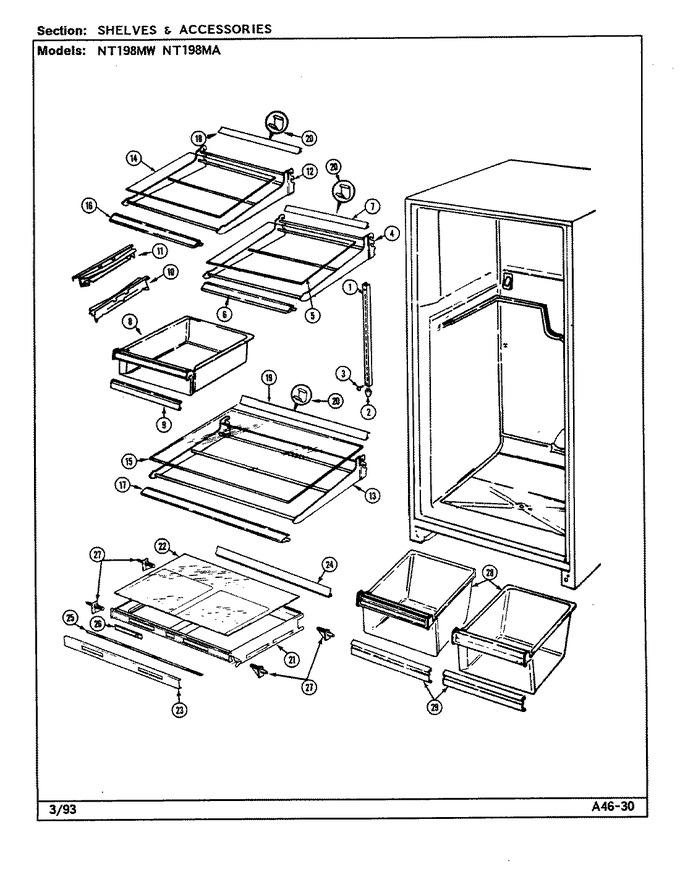

04 - Shelves & Accessories
05 - Unit Compartment & System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 60096-7 | Rail, Shelf Support (lt) | 11 |
|
- | ||||
| 1 | 60096-8 | Rail, Shelf Support (rt) | 11 |
|
- | ||||
| 1 | 60096-9 | Rail, Shelf Support (center) | 11 |
|
- | ||||
| 2 | 60340-1 | End Cap, Center Rail | 11 |
|
- | ||||
| 3 | 400037-28 | Screw | 11 |
|
- | ||||
| 4 | 60570-36 | Frame, Shelf | 11 |
|
- | ||||
| 5 | 66604-30 | Shelf | 11 |
|
- | ||||
| 6 | 60524-6 | Trim, Meat Shelf (front) | 11 |
|
- | ||||
| 7 | 65276-4 | Trim, Meat Shelf (rear) | 11 |
|
- | ||||
| 8 | 66516-6 | Pan, Meat | 11 |
|
- | ||||
| 9 | 66230-13 | Trim | 11 |
|
- | ||||
| 10 | 66814-1 | Rail, Meat Pan (rt) | 11 |
|
- | ||||
| 11 | 66813-1 | Rail, Meat Pan (lt) | 11 |
|
- | ||||
| 12 | 60570-36 | Frame, Shelf | 11 |
|
- | ||||
| 13 | 60570-45 | Frame, Shelf | 11 |
|
- | ||||
| 14 | 66604-23 | Glass, Cantilever Split Shelf | 11 |
|
- | ||||
| 15 | 66604-22 | Glass, Cantilever Shelf | 11 |
|
- | ||||
| 16 | 60524-6 | Trim, Meat Shelf (front) | 11 |
|
- | ||||
| 17 | 60524-28 | Trim,shelf (full Front) | 11 |
|
- | ||||
| 18 | 65276-3 | Trim | 11 |
|
- | ||||
| 19 | 65276-21 | Trim, Shelf (full Rear) | 11 |
|
- | ||||
| 20 | 66333-1 | Clip, Shelf Trim | 11 |
|
- | ||||
| 21 | 68735-1 | Shelf, Crisper | 11 |
|
- | ||||
| 22 | 68743-13 | Shelf, Crisper | 11 |
|
- | ||||
| 23 | 68744-4 | Trim | 11 |
|
- | ||||
| 24 | 68798-1 | Trim, Crisper Shelf (rear) | 11 |
|
- | ||||
| 25 | 68797-1 | Seal | 11 |
|
- | ||||
| 26 | 68742-1 | Slide, Control | 11 |
|
- | ||||
| 27 | 68836-1 | Stud, Crisper Support | 11 |
|
- | ||||
| 28 | 68222-547 | Pan, Crisper | 11 |
|
- | ||||
| 29 | 66230-14 | Trim | 11 |
|
- |
