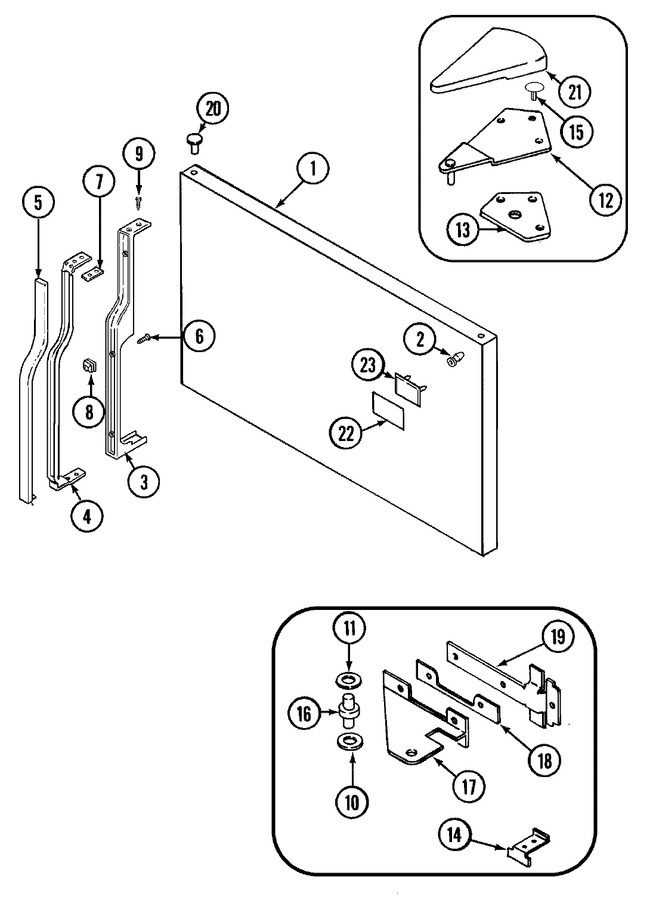

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61001210		Panel, Frz. Door (blk)	10	Appelez-nous	-
2	29356-1		Retainer, Nameplate	10	Appelez-nous	-
3	69480-5		Plug Button (blk)	10	Appelez-nous	-
3	70050-1		Handle, Frz. Door (chr)	10	Appelez-nous	-
4	70052-4		Frame, Handle	10	Appelez-nous	-
5	70053-12		Insert, Handle (blk)	10	Appelez-nous	-
6	415033-1		Screw	10	Appelez-nous	-
7	67934-1		Shim, Handle	10	Appelez-nous	-
8	69743-1		Grommet	10	Appelez-nous	-
9	65275-22		Screw	10	Appelez-nous	-
10	54233-1		Washer	10			$ 7.71
11	67483-6		Washer	10	Appelez-nous	-
12	WP3-24838-048		Screw, Upper Hinge   (Replaces: 65275-86)	10			$ 7.00
12	53709-24		Hinge, Upper	10	Appelez-nous	-
13	65031-1		Shim, Upper Hinge	10	Appelez-nous	-
14	69256-2		Stop, Door	10	Appelez-nous	-
14	65275-48		Screw	10	Appelez-nous	-
15	56144-19		Plug, Button (black)	10	Appelez-nous	-
16	69517-2		Pin, Center Hinge	10	Appelez-nous	-
17	69514-3		Hinge	10	Appelez-nous	-
17	65275-62		Screw	10	Appelez-nous	-
18	69515-1		Shim, Center Hinge	10	Appelez-nous	-
19	65275-61		Screw	10	Appelez-nous	-
19	69419-1		Tapping Plate, Center Hinge	10	Appelez-nous	-
20	67634-5		Plug, Button (blk)	10	Appelez-nous	-
21	70121-6		Cover, Upper Hinge (blk)	10	Appelez-nous	-
22	61001211		Insert, Nameplate (blk)	10	Appelez-nous	-
23	66986-6		Bezel, Nameplate	10	Appelez-nous	-
23	66986-8		Bezel, Nameplate	10	Appelez-nous	-
