Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3051133 Drawer Body Appelez-nous -
2 3012699 Glide Appelez-nous -
3 3131117 Pnl Drawer (white) Appelez-nous -
4 3131125 Handle Appelez-nous -
5 3131975 Shield-pnl Appelez-nous -
6 3131387 Fstnr, Spacer (2) Appelez-nous -
*32350 5303051818 Screw-pnl Assy (5) Appelez-nous -
*32350 3013964 Screw-pnl Assy (2) Appelez-nous -

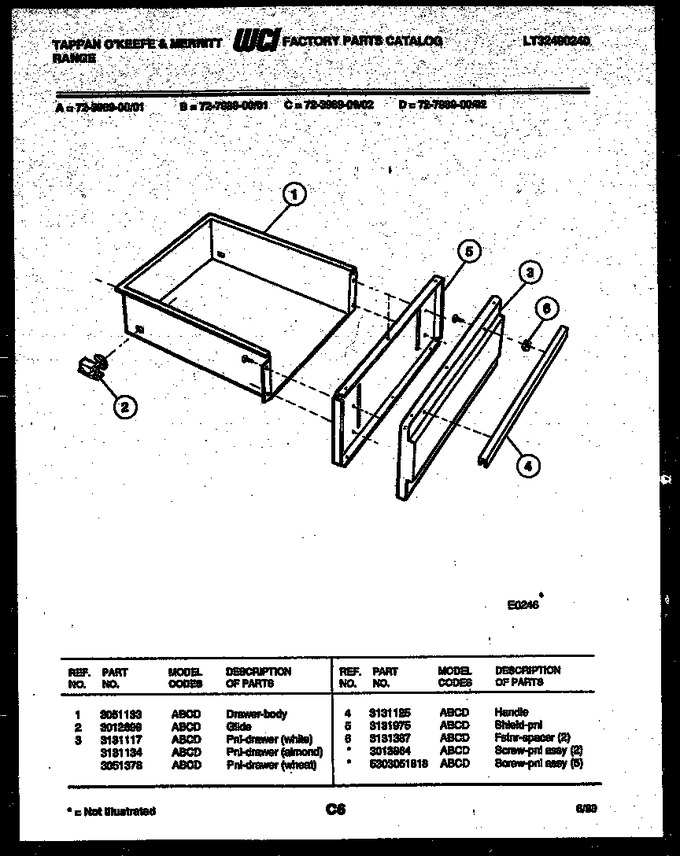

    View Diagram in Separate Window     Print Icon   Print Part List
