SELECT A DIAGRAM

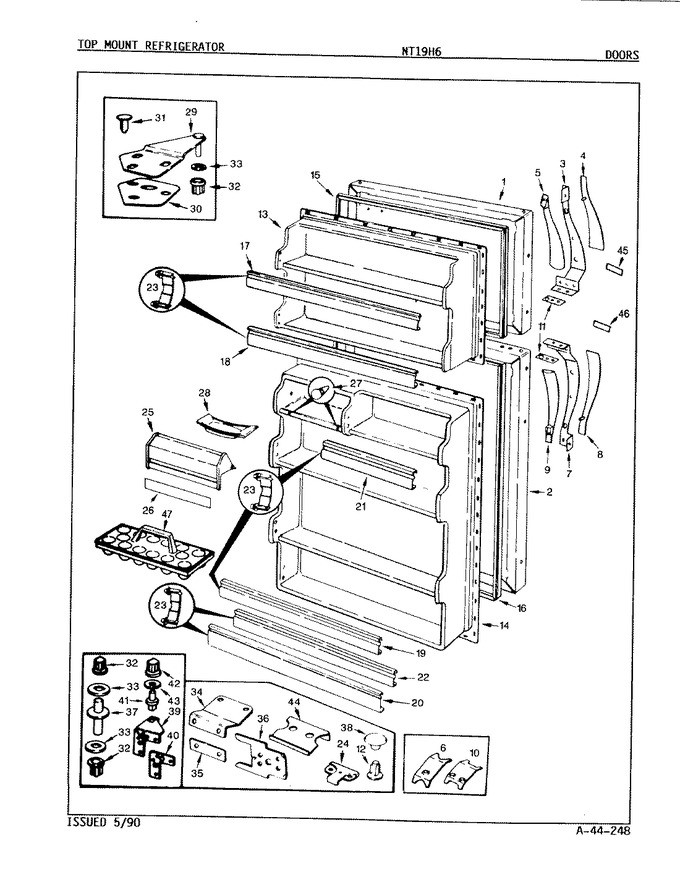

01 - Doors


02 - Freezer Compartment


03 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60033-6-AM		Outer Panel		Appelez-nous	-
2	60032-53-AM		Outer Panel		Appelez-nous	-
2	RA95056-1		Door Insulation Kit		Appelez-nous	-
3	66255-3		Door Handle		Appelez-nous	-
4	68016-1		Insert, Handle		Appelez-nous	-
4	68017-1		Insert, Vinyl		Appelez-nous	-
5	60445-1		Insert		Appelez-nous	-
6	56209-3		Clip, Stop Screw		Appelez-nous	-
7	66255-4		Door Handle		Appelez-nous	-
7	9986-122		Screw		Appelez-nous	-
8	68016-2		Insert, Handle----na		Appelez-nous	-
9	60445-1		Insert		Appelez-nous	-
10	60123-2		Clip, Stop Screw		Appelez-nous	-
10	9986-112		Screw		Appelez-nous	-
11	60456-1		Shim		Appelez-nous	-
12	55782-6		Plug Button (almond)		Appelez-nous	-
12	495042-900		Plug Button		Appelez-nous	-
13	65928-9		Liner, Door		Appelez-nous	-
14	65275-5		Screw		Appelez-nous	-
14	65933-19		Liner, Door		Appelez-nous	-
15	66199-5		Gasket, Frz. Door		Appelez-nous	-
16	WP70048-3		Gasket, F.f. Door   (Replaces: 66199-6)				$ 283.11
17	WP61003045		Trim, Door Shelf   (Replaces: 65151-258)				$ 129.55
18	66636-21		Trim		Appelez-nous	-
19	65151-270		Trim, Door Shelf		Appelez-nous	-
20	WP61003045		Trim, Door Shelf   (Replaces: 65151-256)				$ 129.55
21	WP61003045		Trim, Door Shelf   (Replaces: 65151-255)				$ 129.55
22	66636-21		Trim		Appelez-nous	-
23	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
24	60419-1		Door Stop		Appelez-nous	-
25	60406-39		Door, Dairy		Appelez-nous	-
26	68128-13		Insert		Appelez-nous	-
27	28272-6		Bumper, Door		Appelez-nous	-
28	29936-2		Tray, Butter		Appelez-nous	-
29	53709-18		Door Hinge, Upper		Appelez-nous	-
30	65031-1		Shim, Upper Hinge		Appelez-nous	-
31	56144-9		Plug Button, Hinge Screw (alm)		Appelez-nous	-
32	66036-1		Bushing,top/center Hinge		Appelez-nous	-
33	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
33	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
34	60031-2		Door Hinge, Center		Appelez-nous	-
35	60034-1		Spacer, Center Hinge		Appelez-nous	-
36	WP3-24838-048		Screw   (Replaces: 9986-107)				$ 7.00
36	60622-1		Tapping Plate		Appelez-nous	-
37	60035-4		Pin, Center Hinge		Appelez-nous	-
38	56186-6		Plug Button, (almond)		Appelez-nous	-
39	60630-8		Door Hinge, Lower		Appelez-nous	-
39	403062-5		Screw		Appelez-nous	-
40	60626-1		Shim, Lower Hinge		Appelez-nous	-
41	53672-1		Pin, Lower Hinge		Appelez-nous	-
42	66034-1		Bushing, Lower Hinge				$ 19.76
43	54233-2		Washer		Appelez-nous	-
44	60030-1		Door Stop		Appelez-nous	-
44	9986-108		Screw		Appelez-nous	-
45	60603-12		Insert, Handle		Appelez-nous	-
46	60603-11		Insert, Handle		Appelez-nous	-
47	60066-1		Tray, Egg		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
