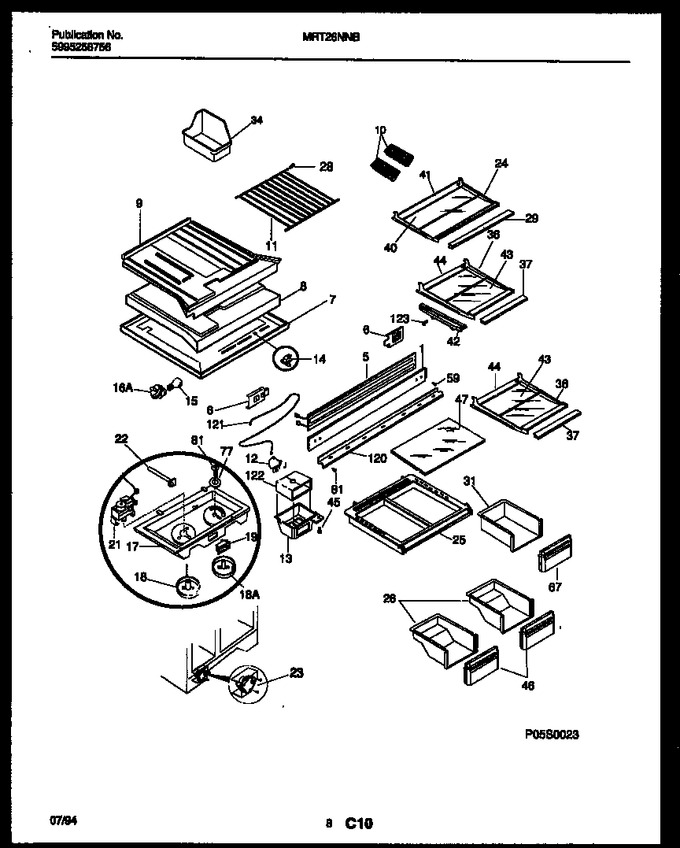

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215002202 | Mullion, White |
|
- | |||||
| 5 | 215099600 | Heater, Mullion |
|
- | |||||
| 6 | 215096700 | Tapping Plate,mullion Mtg,(2) |
|
- | |||||
| 7 | 215066303 | Top Panel-refr |
|
- | |||||
| 8 | 215340401 | Divider, Styrofoam |
|
- | |||||
| 9 | 215060000 | Bottom Panel-frzr |
|
- | |||||
| 10 | 215667501 | Tray-ice, Plastic |
|
Immediately | $ 6.07 | ||||
| 11 | 5303294245 | Shelf-freezer |
|
- | |||||
| 12 | 215132300 | Deflector, Air, ``paddle`` |
|
- | |||||
| 13 | 215420300 | Cover-air Deflector |
|
- | |||||
| 14 | 5309918806 | Switch-light/lamp |
|
Immediately | $ 21.97 | ||||
| 15 | 5303001179 | Light Bulb/lamp,40 W |
|
- | |||||
| 17 | 215932903 | Box-control |
|
- | |||||
| 18 | 5303296667 | Knob-temp Control,refr |
|
- | |||||
| 19 | 5303286905 | Switch-energy Saver |
|
$ 27.08 | |||||
| 21 | 5303305486 | Control-temperature |
|
$ 122.43 | |||||
| 22 | 215932100 | Housing,cont Cap Tube |
|
- | |||||
| 23 | 215846602 | Timer (Replaces: 5303275811) |
|
Immediately | $ 28.20 | ||||
| 24 | 215919151 | Frame-full Shelf, Cantilever |
|
- | |||||
| 25 | 215216624 | Cover-crisper Pan, W/ Beam & Trim |
|
- | |||||
| 26 | 5303300008 | Pan-crisper (2) |
|
- | |||||
| 28 | 215341200 | Cap-protector |
|
$ 2.54 | |||||
| 29 | 215919507 | Trim-full Shelf, Front |
|
- | |||||
| 31 | 5303292434 | Pan-meat |
|
- | |||||
| 34 | 5303212918 | Container-ice |
|
$ 104.66 | |||||
| 36 | 215919150 | Frame-half Shelf, Cantilever, (2) |
|
- | |||||
| 37 | 215919514 | Trim-half Shelf, Front, (2) |
|
- | |||||
| 40 | 5303303679 | Glass-full Shelf |
|
- | |||||
| 41 | 215919807 | Trim-full Shelf, Rear |
|
- | |||||
| 42 | 215002301 | Hanger-pan / Tray, Lh |
|
$ 65.82 | |||||
| 43 | 5303303678 | Glasshalf Shelf, (2) |
|
- | |||||
| 44 | 215919814 | Trim-half Shelf, Rear (2) |
|
- | |||||
| 11A | 215934600 | Spacer-frzr Shelf (non-illustrated) |
|
- | |||||
| 12A | 215363800 | Spacer-air Deflectr(non-illustrated) |
|
- | |||||
| 12B | 215363900 | Washer-air Deflectr (non-illustrated) |
|
- | |||||
| 13A | 5308016567 | Nut-anchor (non-illustrated) |
|
- | |||||
| 16A | 218906802 | Socket-light/lamp (Replaces: 5308000815) |
|
$ 17.72 | |||||
| 17A | 215935700 | Nut-anchor,control Box Mtg (non-illustrated) |
|
- | |||||
| 18A | 5303296668 | Knob-temp Control,frzr |
|
- | |||||
| 21A | 5303001260 | Screw |
|
$ 6.73 | |||||
| 23A | 215277000 | Cover-defrost Timer, Top (non-illustrated) |
|
- | |||||
| 23B | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 23C | 5303289058 | Shield-defrost Timr, Btm (non-illustrated) |
|
- | |||||
| 25A | 5303296649 | Trim-crisper Cover (non-illustrated) |
|
- | |||||
| 42A | 215002401 | Hanger-pan/tray,rh (non-illustrated) |
|
$ 85.84 | |||||
| 7A | 5303001380 | Screw |
|
- |
