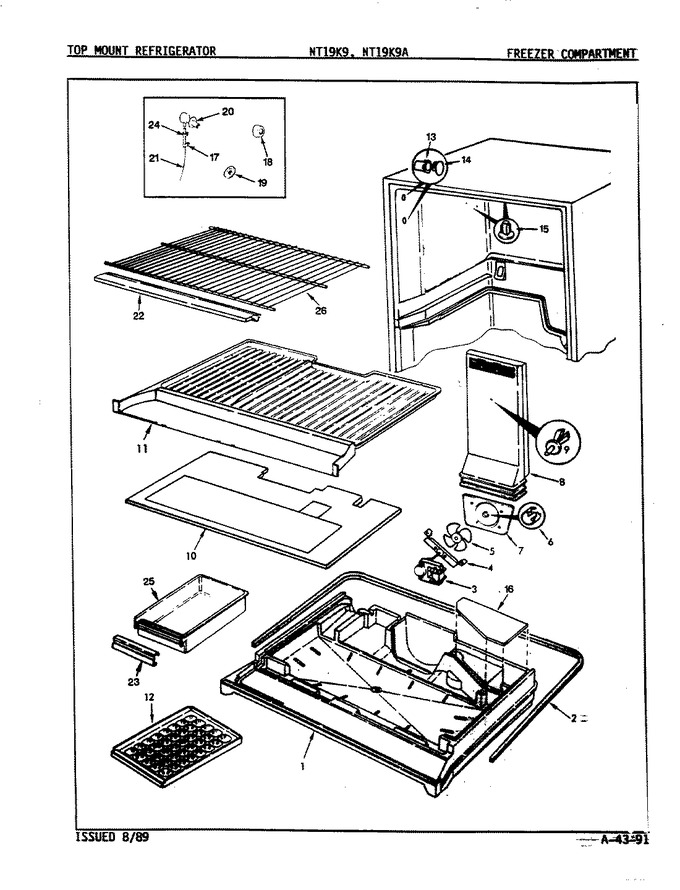

03 - Freezer Compartment
04 - Unit Compartment & System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 66606-1 | Tray, Styrofoam Mullion |
|
- | |||||
| 2 | 66325-5 | Seal |
|
- | |||||
| 3 | 54482-11 | Motor |
|
- | |||||
| 3 | 60565-1 | Wire Harness |
|
- | |||||
| 3 | 29675-30 | Ground Wire |
|
- | |||||
| 3 | 406062-1 | Screw |
|
- | |||||
| 4 | 400015-12 | Screw |
|
- | |||||
| 4 | 64856-1 | Bracket, Fan Motor |
|
- | |||||
| 5 | 53707-1 | Blade, Evaporator Fan |
|
- | |||||
| 6 | 420092-900 | Washer, Spring |
|
- | |||||
| 7 | 60608-2 | Orifice, Fan Blade |
|
- | |||||
| 8 | 66044-3 | Tunnel, Air |
|
- | |||||
| 9 | 66045-1 | Pin, Air Tunnel Mtg. |
|
- | |||||
| 10 | 66403-1 | Cover, Evaporator |
|
- | |||||
| 11 | 66479-1 | Bottom, Frz. |
|
- | |||||
| 12 | WP61002140 | Ice Cube Tray (Replaces: 60112-1) |
|
$ 18.23 | |||||
| 13 | 60313-1 | Cup, Shelf |
|
- | |||||
| 14 | 60321-1 | Plug |
|
- | |||||
| 16 | 66480-1 | Cover, Plenum |
|
- | |||||
| 17 | 53616-8 | Clamp, Tube |
|
- | |||||
| 18 | 68187-1 | Cap, Connector |
|
- | |||||
| 19 | 68387-1 | Cap, Grommet |
|
- | |||||
| 20 | 68307-1 | Grommet, Water Entry |
|
- | |||||
| 21 | WPB5705307 | Tubing, Valve To Grommet (Replaces: 67579-7) |
|
$ 11.19 | |||||
| 22 | 68136-23 | Trim, Frz. Shelf |
|
- | |||||
| 23 | 60132-100 | Trim, Handle Pan |
|
- | |||||
| 24 | WPM0114003 | Clamp, Spring (Replaces: 60333-4) |
|
$ 9.95 | |||||
| 25 | 67557-1 | Plug Button |
|
- | |||||
| 25 | 60653-1 | Pan, Ice |
|
- | |||||
| 25 | 67054-1 | Anchor Screw |
|
- | |||||
| 26 | 66101-1 | Stud, Shelf |
|
- | |||||
| 26 | 60438-17 | Shelf |
|
- |
