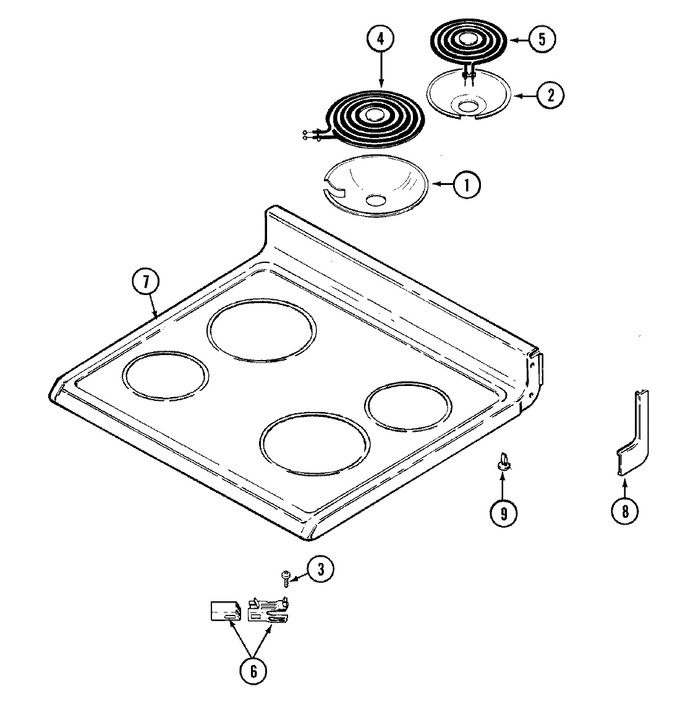

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10290350 | Bowl, Drip (8`` Blk) (Replaces: Y04100393) | 16 |
|
Immediately | $ 15.25 | |||
| 1 | WPW10290350 | Bowl, Drip (8``) (blk) (Replaces: 7725P023-60) | 10 |
|
Immediately | $ 15.25 | |||
| 2 | W10290353RW | Bowl, Drip (6``) (blk) (Replaces: 7725P022-60) | 10 |
|
Immediately | $ 19.27 | |||
| 2 | W10290353RW | Bowl, Drip (6`` Blk) (Replaces: Y04100392) | 16 |
|
Immediately | $ 19.27 | |||
| 3 | WP74004005 | Screw (Replaces: 7101P349-60) | 10 |
|
$ 6.95 | ||||
| 4 | WP12001560 | Element, Surface (8``) (Replaces: 74004089) | 30 |
|
$ 172.17 | ||||
| 4 | WP12001560 | Element, Surface (8``) (Replaces: 74001774) | 15 |
|
$ 172.17 | ||||
| 4 | WP12001560 | Element (8``) (Replaces: 7406P080-60) | 10 |
|
$ 172.17 | ||||
| 5 | WP12001559 | Element, Surface (6``) (Replaces: 74004090) | 30 |
|
$ 141.24 | ||||
| 5 | WPW10259868 | Element, Surface (6``) (Replaces: 74001776) | 15 |
|
Immediately | $ 112.28 | |||
| 5 | WPW10259868 | Element (6``) (Replaces: 7406P081-60) | 10 |
|
Immediately | $ 112.28 | |||
| 6 | 12001676 | Kit, Receptacle (Replaces: 1430306K) | 10 |
|
Immediately | $ 28.45 | |||
| 7 | 74001146 | Top, Main (alm) | 10 |
|
- | ||||
| 8 | WP3195558 | Nut, Speed (Replaces: 7103P044-60) | 10 |
|
$ 7.68 | ||||
| 8 | 7746P030-60 | End Cap (rt-blk) | 10 |
|
$ 26.16 | ||||
| 8 | 7746P031-60 | End Cap (lt-blk) | 10 |
|
$ 26.25 | ||||
| 9 | 8016P015-60 | Glide | 10 |
|
$ 5.65 |
