Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3205898 Backsheet Appelez-nous -
2 131205100 Screw (4) In-Stock Immediately $ 14.18

3 131338600 Timer Appelez-nous -
4 3161188 Screw Appelez-nous -
5 131302500 Switch-pressure Special Order $ 302.25

6 131168200 Screw In-Stock Immediately $ 14.18

12 5303291344 End Cap-lh Special Order $ 59.59

13 5303291352 End Cap-rh Special Order $ 56.49

14 5303289526 Screw Appelez-nous -
15 5303295581 Indicator Appelez-nous -
16 5308014337 Knob - Timer Special Order $ 32.57

18 131359200 Panel-control Appelez-nous -
19 131297306 Bracket-controls Appelez-nous -
20 131166000 Harness Appelez-nous -
25 5308015493 Spacer-shaft Special Order $ 14.36

26 131197000 Clip Special Order $ 13.62

*10516 5303281035 Screw-grounding-body Appelez-nous -
*10516 131243800 Screw-grounding-top Panel Special Order $ 10.46


    View Diagram in Separate Window     Print Icon   Print Part List

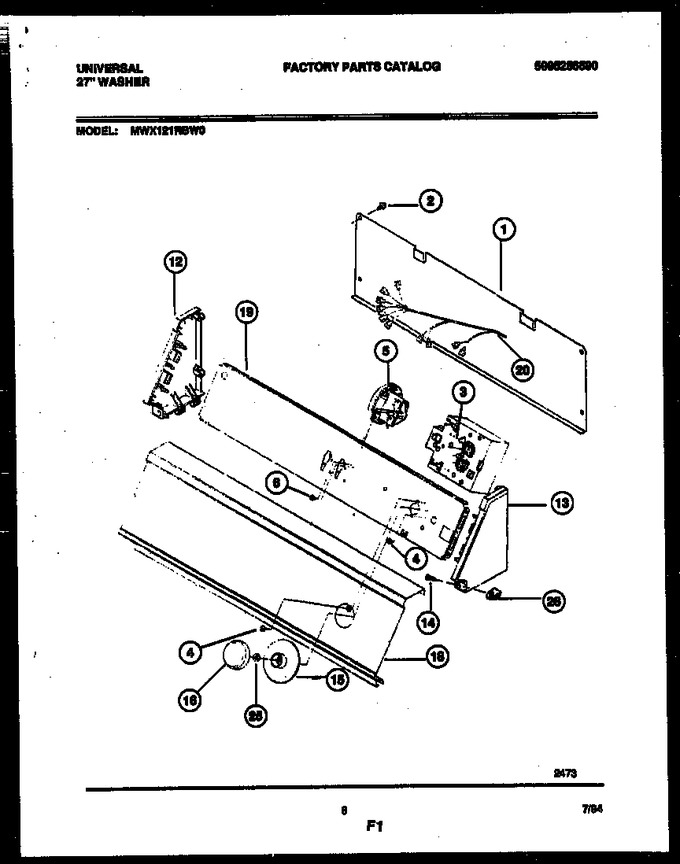

Diagram for MWX121RBWL0
