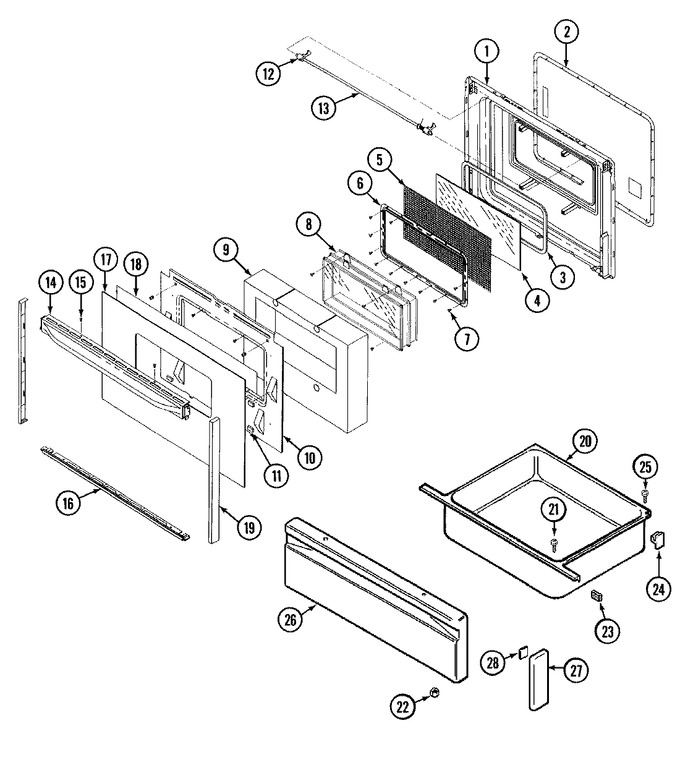

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer
04 - Microwave Components
05 - Oven/base
06 - Stirrer Assembly
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74001105 | Lining, Door | 10 |
|
- | ||||
| 2 | 7201P059-60 | Gasket, Oven Door | 10 |
|
- | ||||
| 3 | 74001106 | Gasket, Window | 10 |
|
- | ||||
| 4 | 7902P392-60 | Glass, Inner | 10 |
|
- | ||||
| 5 | 74001107 | Screen, Inner Glass | 10 |
|
- | ||||
| 6 | 74001108 | Retainer, Screen----na | 10 |
|
- | ||||
| 7 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 8 | 74001109 | Window Assy. | 10 |
|
- | ||||
| 9 | 4804F051-60 | Insulation, Door | 10 |
|
- | ||||
| 10 | 3601F236-47 | Baffle, Door | 10 |
|
- | ||||
| 10 | W11233072 | Screw (Replaces: 7101P290-60) | 10 |
|
Immediately | $ 12.62 | |||
| 11 | 8010P085-60 | Spacer, Rubber | 10 |
|
- | ||||
| 12 | 74001110 | Lever, Switch Activator (rt) | 10 |
|
- | ||||
| 12 | 74001112 | Spring | 10 |
|
- | ||||
| 12 | 74001111 | Lever, Switch Activator (lt) | 10 |
|
- | ||||
| 12 | 74001168 | Washer | 10 |
|
- | ||||
| 13 | 74001113 | Shaft, Lever | 10 |
|
- | ||||
| 14 | 74001171 | Handle, Door (wht) | 10 |
|
- | ||||
| 15 | WP98008544 | Screw (wht) (Replaces: 7101P308-60) | 10 |
|
$ 11.89 | ||||
| 16 | W11233072 | Screw (Replaces: 7101P290-60) | 10 |
|
Immediately | $ 12.62 | |||
| 16 | 7744P103-60 | Trim, Bottom (wht) | 10 |
|
- | ||||
| 17 | 74001174 | Glass, Outer (wht) | 10 |
|
- | ||||
| 18 | 8270P078-60 | Tape, Foil (29 1/2``) | 10 |
|
- | ||||
| 19 | 74002342 | End Cap, Door (wht) | 22 |
|
- | ||||
| 19 | 7744P065-60 | End Cap, Door (wht) | 10 |
|
- | ||||
| 19 | 8270P093-60 | Tape, End Cap | 10 |
|
- | ||||
| 20 | 71003042 | Drawer, Storage | 29 |
|
- | ||||
| 20 | 3405F018-80 | Drawer, Storage | 10 |
|
- | ||||
| 21 | WP7101P072-60 | Screw (Replaces: 7101P072-60) | 10 |
|
$ 6.77 | ||||
| 22 | WPW10131078 | Nut, Lock (Replaces: 7103P139-60) | 10 |
|
$ 4.00 | ||||
| 23 | WP854334 | Seal, Door Panel (Replaces: 7208P009-60) | 10 |
|
$ 11.95 | ||||
| 24 | 8004P026-60 | Support, Drawer (rear) | 10 |
|
$ 9.29 | ||||
| 24 | WP488130 | Nut (Replaces: 7103P082-60) | 29 |
|
$ 6.27 | ||||
| 24 | 74003566 | Roller, Drawer | 29 |
|
- | ||||
| 25 | W11233072 | Screw (Replaces: 7101P290-60) | 10 |
|
Immediately | $ 12.62 | |||
| 25 | W10124350 | Not Required Part Or See Note | 29 |
|
- | ||||
| 26 | 2416F039-62 | Panel, Drawer (wht) | 10 |
|
- | ||||
| 27 | 7744P069-60 | End Cap, Drawer (wht) | 10 |
|
- | ||||
| 27 | 74002740 | End Cap, Drawer (wht) | 22 |
|
- | ||||
| 28 | 8270P098-60 | Tape | 10 |
|
$ 5.02 |
