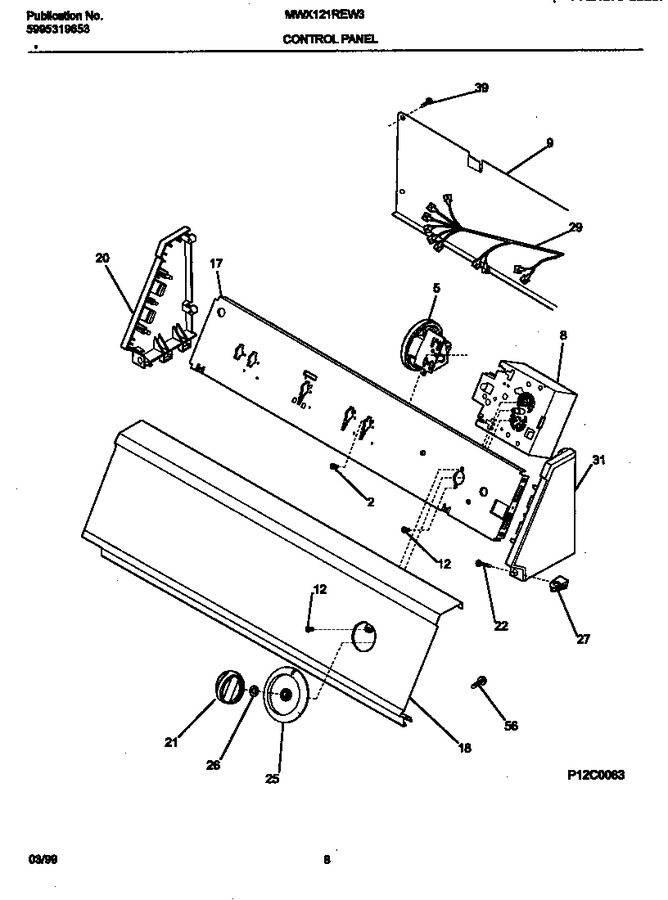

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
5	131302500		Switch-pressure				$ 302.25
8	131514700		Timer		Appelez-nous	-
9	5303205838		Backsheet-console		Appelez-nous	-
12	218359202		Screw, Cr Pan Head, 8-32 X 0.25, Thread Forming   (Replaces: 5303283289)				$ 10.63
17	131728900		Bracket-controls		Appelez-nous	-
18	131508500		Panel-control		Appelez-nous	-
20	5303291344		End Cap, Black, Lh				$ 59.59
21	131118400		Knob-timer, Black				$ 54.07
22	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
25	131118502		Dial-timer, Black/gray				$ 43.14
26	5308015493		Spacer-timer Shaft				$ 14.36
27	131197000		Clip-control Panel				$ 13.62
29	131793600		Harness-washer Wiring		Appelez-nous	-
31	5303291352		End Cap, Black, Rh				$ 56.49
39	131205100		Screw,8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
56	131243800		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,cr/sq Driv				$ 10.46
