SELECT A DIAGRAM

01 - Cover


02 - Cabinet/top


03 - Motor/tub


04 - Transmission


05 - Control Panel

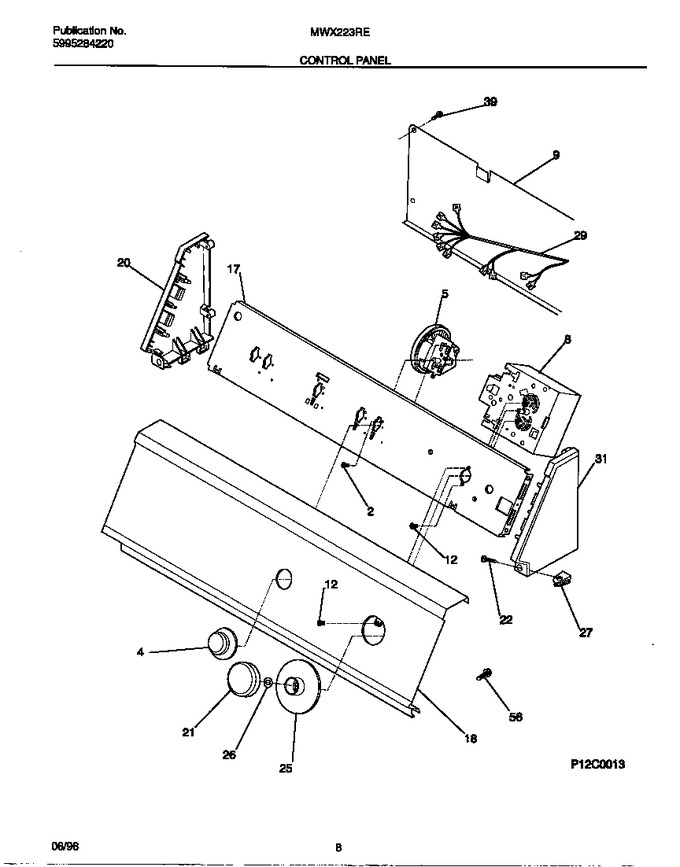

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, Pph B St/z, 8-18 X .31			Immediately	$ 14.18
4	131118602		Knob-rotary, Black/gray, (2)		Appelez-nous	-
5	131047500		Switch-pressure				$ 186.53
8	131436600		Timer				$ 346.82
9	3205898		Backsheet-console		Appelez-nous	-
12	3161188		Screw-timer, Pth St, 8-32nc-2a X .25		Appelez-nous	-
17	131297306		Bracket-controls		Appelez-nous	-
18	131508400		Panel-control		Appelez-nous	-
20	5303291344		End Cap, Black, Lh				$ 59.59
21	131118400		Knob-timer, Black				$ 54.07
22	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
25	131118502		Dial-timer, Black/gray				$ 43.14
26	5308015493		Spacer-timer Shaft				$ 14.36
27	131197000		Clip-control Panel				$ 13.62
29	131519700		Harness-washer		Appelez-nous	-
31	5303291352		End Cap, Black, Rh				$ 56.49
39	131205100		Screw,no.8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
56	131243800		Screw, Pan Hd Locking, 8-32ca X 0.375, Cr/sq Drive				$ 10.46
