SELECT A DIAGRAM

01 - Chest Of Drawers


02 - Freezer Compartment

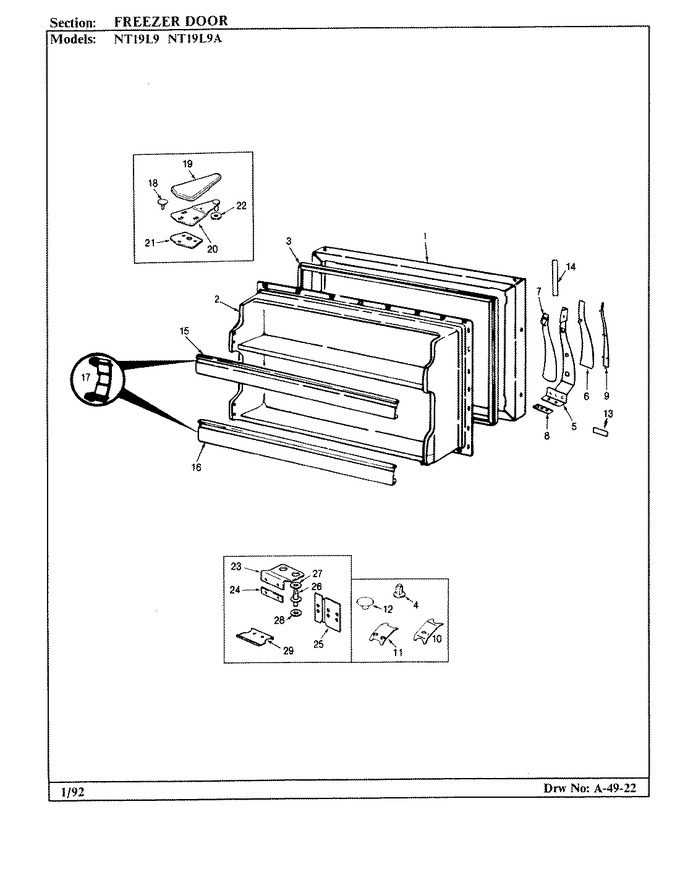

03 - Freezer Door


04 - Optional Ice Maker (imktm1 B/m Ayo7a)


05 - Shelves & Accessories


06 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72045-3-AM		Panel, Frz. Door (alm)		Appelez-nous	-
2	65275-5		Screw		Appelez-nous	-
2	65928-5		Liner, Frz. Door		Appelez-nous	-
3	66199-5		Gasket, Frz. Door		Appelez-nous	-
4	55782-10		Plug Button, Hdle & Door Stop		Appelez-nous	-
5	66255-3		Door Handle		Appelez-nous	-
5	9986-122		Screw		Appelez-nous	-
6	68016-5		Handle Insert, Front		Appelez-nous	-
6	68016-3		Handle Insert, Front		Appelez-nous	-
7	60445-4		Insert, Handle (back)		Appelez-nous	-
7	9986-112		Screw		Appelez-nous	-
7	60445-3		Insert, Handle (back)		Appelez-nous	-
8	68776-1		Shim Handle----na		Appelez-nous	-
9	68017-2		Insert, Vinyl Clad		Appelez-nous	-
10	56209-3		Clip, Stop Screw		Appelez-nous	-
11	60123-2		Clip, Stop Screw		Appelez-nous	-
12	67634-2		Plug Button, Hinge Cup (wht)		Appelez-nous	-
13	60603-13		Insert, Handle		Appelez-nous	-
15	WP61003045		Trim, Shelf   (Replaces: 68375-17)				$ 129.55
16	WP61003045		Trim, Shelf   (Replaces: 68375-11)				$ 129.55
17	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
18	56144-13		Plug Button, Upper Hinge (wht)		Appelez-nous	-
19	65003-6		Cover, Upper Hinge (wht)		Appelez-nous	-
20	53709-20		Hinge, Upper		Appelez-nous	-
20	WP3-24838-048		Screw   (Replaces: 65275-52)				$ 7.00
21	65031-1		Shim, Upper Hinge		Appelez-nous	-
22	54233-1		Washer				$ 7.71
23	65275-55		Screw		Appelez-nous	-
23	68811-2		Hinge, Center		Appelez-nous	-
24	68812-1		Shim, Center Hinge		Appelez-nous	-
25	68377-1		Tapping Plate, Center Hinge		Appelez-nous	-
26	67322-1		Pin, Center Hinge		Appelez-nous	-
27	67483-1		Washer, Center Hinge (upper)		Appelez-nous	-
28	54233-2		Washer		Appelez-nous	-
29	68988-1		Stop, Door		Appelez-nous	-
29	65275-48		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
