SELECT A DIAGRAM

01 - Chest Of Drawers


02 - Doors


03 - Freezer Compartment


04 - Fresh Food Compartment


05 - Unit Compartment & System

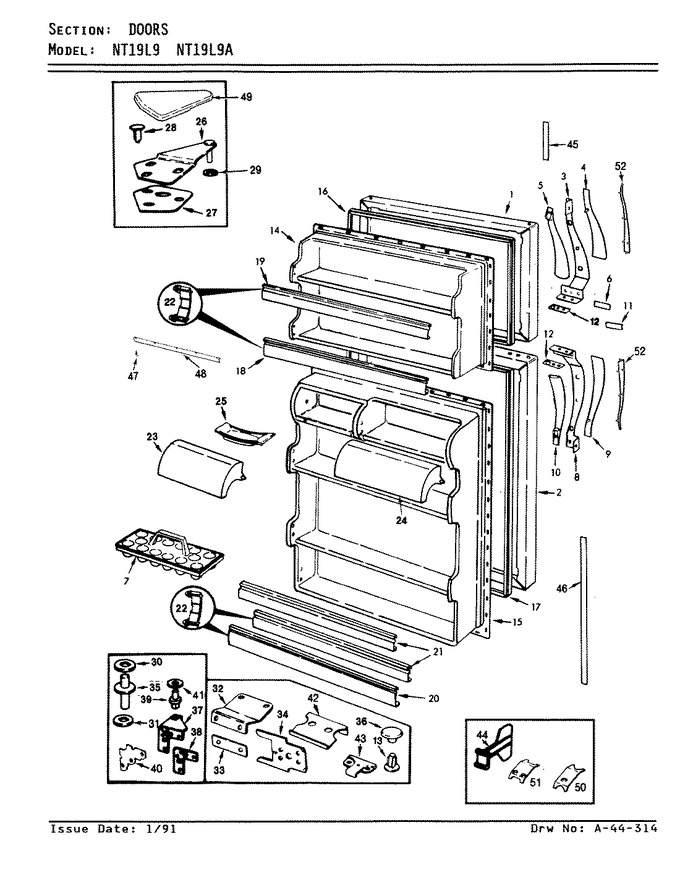

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72045-3-AM		Panel, Frz. Door (alm)		Appelez-nous	-
2	68473-3-AM		Panel, F.f. Door (alm)		Appelez-nous	-
2	RA95056-1		Door Insulation Kit		Appelez-nous	-
3	66255-3		Door Handle		Appelez-nous	-
4	68016-3		Handle Insert, Front		Appelez-nous	-
4	68016-5		Handle Insert, Front		Appelez-nous	-
5	9986-112		Screw		Appelez-nous	-
5	60445-4		Insert, Handle (back)		Appelez-nous	-
5	60445-3		Insert, Handle (back)		Appelez-nous	-
6	60603-14		Insert, Handle		Appelez-nous	-
7	60066-1		Tray, Egg		Appelez-nous	-
8	66255-4		Door Handle		Appelez-nous	-
8	9986-122		Screw		Appelez-nous	-
9	68016-6		Handle Insert, Front		Appelez-nous	-
9	68016-4		Insert		Appelez-nous	-
10	60445-4		Insert, Handle (back)		Appelez-nous	-
10	60445-3		Insert, Handle (back)		Appelez-nous	-
11	60603-13		Insert, Handle		Appelez-nous	-
12	68776-1		Shim Handle----na		Appelez-nous	-
13	55782-6		Plug Button (almond)		Appelez-nous	-
14	65928-18		Liner, Door		Appelez-nous	-
15	68719-1		Liner, F.f. Door		Appelez-nous	-
15	65275-5		Screw		Appelez-nous	-
16	66199-5		Gasket, Frz. Door		Appelez-nous	-
17	WP70048-3		Gasket, F.f. Door   (Replaces: 66199-6)				$ 283.11
18	WP61003045		Trim, Shelf   (Replaces: 68375-11)				$ 129.55
19	WP61003045		Trim, Shelf   (Replaces: 68375-17)				$ 129.55
20	WP61003045		Trim, Fresh Food Shelf   (Replaces: 68375-12)				$ 129.55
21	WP61003045		Trim, Shelf   (Replaces: 68375-11)				$ 129.55
22	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
23	66184-365		Door, Dairy		Appelez-nous	-
24	66184-366		Door, Dairy		Appelez-nous	-
25	29936-2		Tray, Butter		Appelez-nous	-
26	53709-20		Hinge, Upper		Appelez-nous	-
27	65031-1		Shim, Upper Hinge		Appelez-nous	-
28	56144-9		Plug Button, Hinge Screw (alm)		Appelez-nous	-
29	54233-1		Washer				$ 7.71
30	67483-1		Washer, Center Hinge (upper)		Appelez-nous	-
31	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
31	54233-2		Washer		Appelez-nous	-
32	68811-2		Hinge, Center		Appelez-nous	-
33	68812-1		Shim, Center Hinge		Appelez-nous	-
34	65275-24		Screw		Appelez-nous	-
34	68377-1		Tapping Plate, Center Hinge		Appelez-nous	-
35	67322-1		Pin, Center Hinge		Appelez-nous	-
36	67634-3		Plug Button, Hinge Cup (alm)		Appelez-nous	-
37	403062-5		Screw		Appelez-nous	-
37	67714-6		Hinge, Lower		Appelez-nous	-
38	60626-1		Shim, Lower Hinge		Appelez-nous	-
39	68788-1		Hinge Pin		Appelez-nous	-
40	65790-3		Tapping Plate		Appelez-nous	-
40	403100-1		Screw		Appelez-nous	-
41	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
42	60030-1		Door Stop		Appelez-nous	-
43	60419-10		Door Stop		Appelez-nous	-
43	9986-108		Screw		Appelez-nous	-
44	64097-11		Organizer, Shelf		Appelez-nous	-
45	60453-22		Handle Trim Extension		Appelez-nous	-
45	60453-20		Trim, Handle Extension		Appelez-nous	-
46	60453-19		Trim Extension		Appelez-nous	-
46	60453-21		Handle Trim Extension		Appelez-nous	-
47	52447-4		Clip		Appelez-nous	-
48	68544-2		Gasket, Secondary		Appelez-nous	-
49	65003-3		Cover, Upper Hinge (alm)		Appelez-nous	-
50	56209-3		Clip, Stop Screw		Appelez-nous	-
51	60123-2		Clip, Stop Screw		Appelez-nous	-
52	68017-3		Insert, Vinyl Clad		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
