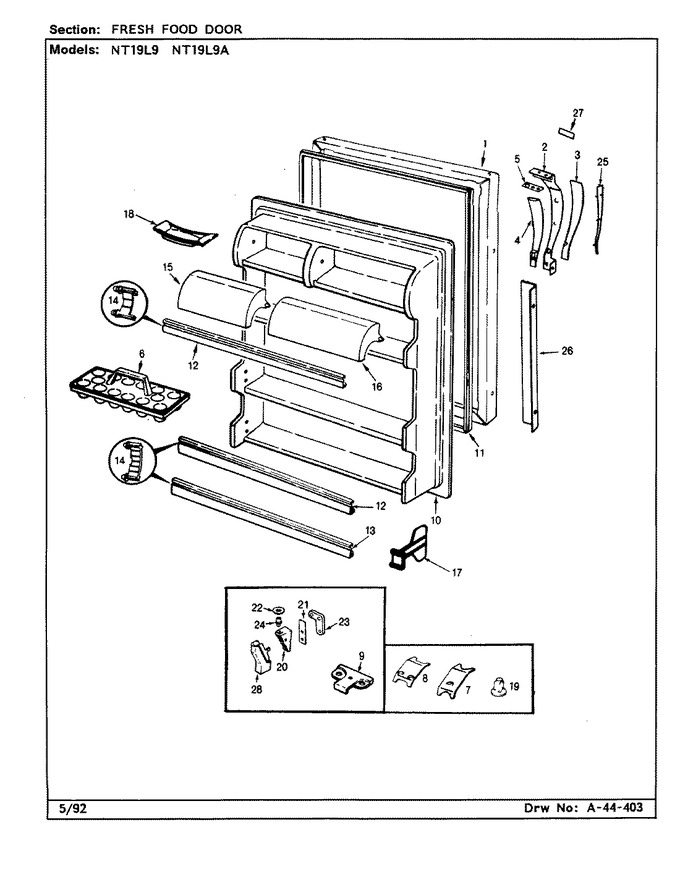

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	RA95056-1		Door Insulation Kit		Appelez-nous	-
1	68473-3-AM		Panel, F.f. Door (alm)		Appelez-nous	-
2	66255-4		Door Handle		Appelez-nous	-
2	65275-57		Screw		Appelez-nous	-
3	68016-6		Handle Insert, Front		Appelez-nous	-
4	65275-53		Screw		Appelez-nous	-
4	60445-4		Insert, Handle (back)		Appelez-nous	-
5	68776-1		Shim Handle----na		Appelez-nous	-
6	60066-1		Tray, Egg		Appelez-nous	-
7	56209-3		Clip, Stop Screw		Appelez-nous	-
8	60123-2		Clip, Stop Screw		Appelez-nous	-
9	68987-1		Stop, Door		Appelez-nous	-
9	65275-48		Screw		Appelez-nous	-
10	65275-5		Screw		Appelez-nous	-
10	68719-1		Liner, F.f. Door		Appelez-nous	-
11	WP70048-3		Gasket, F.f. Door   (Replaces: 66199-6)				$ 283.11
12	WP61003045		Trim, Shelf   (Replaces: 68375-11)				$ 129.55
13	WP61003045		Trim, Fresh Food Shelf   (Replaces: 68375-12)				$ 129.55
14	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
15	66184-365		Door, Dairy		Appelez-nous	-
16	66184-366		Door, Dairy		Appelez-nous	-
17	64097-11		Organizer, Shelf		Appelez-nous	-
18	29936-2		Tray, Butter		Appelez-nous	-
19	55782-6		Plug Button (almond)		Appelez-nous	-
20	65275-51		Screw, Lower Hinge		Appelez-nous	-
20	68975-2		Hinge, Lower		Appelez-nous	-
21	69031-1		Shim		Appelez-nous	-
22	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
23	65275-59		Screw		Appelez-nous	-
23	67874-1		Tapping Plate, Lower Hinge		Appelez-nous	-
24	68977-1		Pin, Hinge		Appelez-nous	-
25	68017-3		Insert, Vinyl Clad		Appelez-nous	-
26	60453-21		Handle Trim Extension		Appelez-nous	-
27	60603-14		Insert, Handle		Appelez-nous	-
28	68978-1		Cover, Lower Hinge (blk)		Appelez-nous	-
