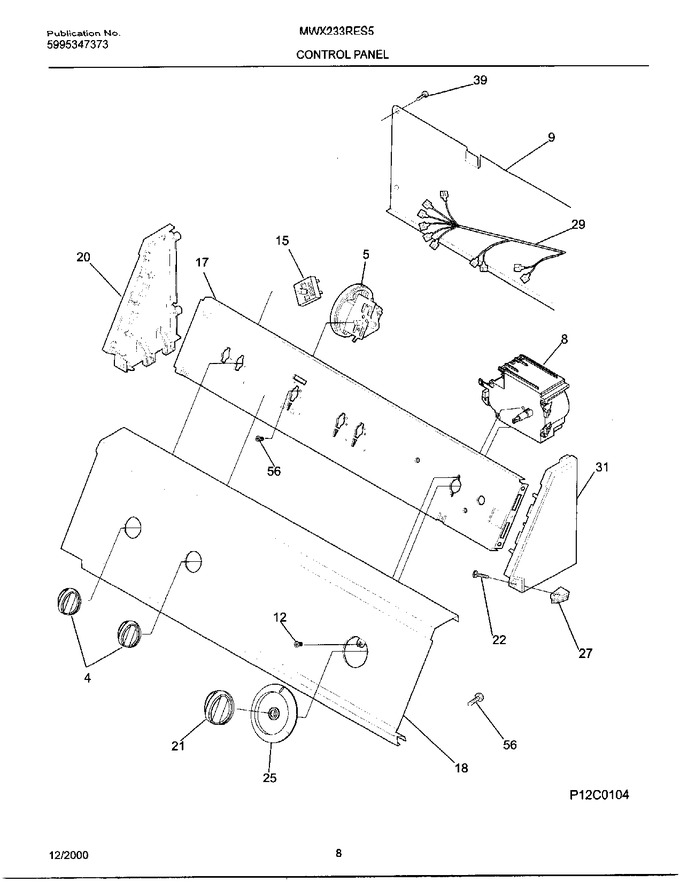

08 - Control Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	131118603		Knob-rotary,white/gray		Appelez-nous	-
8	131758600		Timer-washer			Immediately	$ 352.01
9	5303205838		Backsheet-console		Appelez-nous	-
12	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
15	131047000		Switch-temperature		Appelez-nous	-
17	131580006		Bracket-control		Appelez-nous	-
18	134012700		Trimplate Mwx233res/mtwx23vrgs		Appelez-nous	-
20	5303291343		End Cap, White, Lh		Appelez-nous	-
21	131978301		Knob-timer Wht Midln Delta Mf1				$ 61.90
22	131266310		Screw-end Cap, Poh Ab Wht Hd, 8-18 X 1.250		Appelez-nous	-
25	131978203		Pntr-wht/gry Midline Delta Mf1		Appelez-nous	-
27	131197000		Clip-control Panel				$ 13.62
29	131982500		Harn J 1sp Rot Temp Emer		Appelez-nous	-
31	5303291351		End Cap, White, Rh		Appelez-nous	-
39	131205100		Screw,8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
56	131243800		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,cr/sq Drive				$ 10.46
F5	131047500		Switch-pressure				$ 186.53
