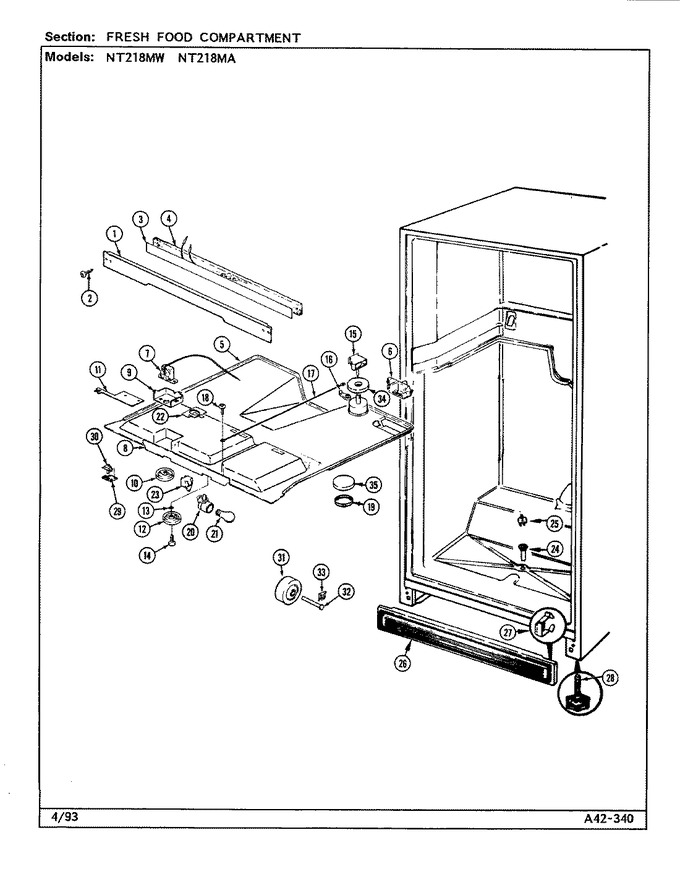

03 - Fresh Food Compartment
04 - Fresh Food Door
05 - Ice Maker
06 - Shelves & Accessories
07 - Unit Compartment & System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 68434-2-WW | Divider, Mullion (wht) |
|
- | |||||
| 2 | 65275-61 | Screw |
|
- | |||||
| 3 | 69617-2 | Heater, Divider Channel |
|
- | |||||
| 4 | 60140-2 | Insulation |
|
- | |||||
| 4 | 70117-2 | Wire Harness, Mullion |
|
- | |||||
| 5 | 69410-1 | Top, F.f. Compartment |
|
- | |||||
| 6 | 69623-1 | Deflector, Air |
|
- | |||||
| 7 | WP68601-6 | Control, Temperature (Replaces: 68601-6) |
|
Immediately | $ 233.80 | ||||
| 7 | 406013-1 | Screw |
|
- | |||||
| 8 | 60571-59 | Insert, Trim Escutcheon |
|
- | |||||
| 9 | 28013-2 | Rivet, Air Tunnel |
|
- | |||||
| 9 | 69421-5 | Cover, Temperature Control |
|
- | |||||
| 9 | 405012-1 | Screw |
|
- | |||||
| 10 | 69417-9 | Knob, Temperature Control |
|
- | |||||
| 11 | 60147-1 | Bracket, Control |
|
- | |||||
| 11 | WP210720 | Rivet (Replaces: 26397-2) |
|
$ 12.14 | |||||
| 12 | WP61006073 | Knob, Freezer Control (Replaces: 69417-10) |
|
$ 30.53 | |||||
| 13 | 420092-900 | Washer, Spring |
|
- | |||||
| 14 | W11233072 | Screw (Replaces: 405016-103) |
|
Immediately | $ 12.62 | ||||
| 15 | 69811-2 | Orifice Assy., Damper |
|
- | |||||
| 16 | 67636-1 | Crank, Frz. Control |
|
- | |||||
| 17 | 69418-4 | Rod, Frz. Control |
|
- | |||||
| 18 | 42005-1 | Code J |
|
- | |||||
| 18 | WP59002061 | Screw (Replaces: 65275-13) |
|
$ 6.98 | |||||
| 19 | 67493-1 | Cover, Crank |
|
- | |||||
| 20 | 68974-3 | Receptacle, Bulb |
|
- | |||||
| 21 | 40A15 | Bulb, Light (40 Watt) (Replaces: 31956) |
|
Immediately | $ 1.98 | ||||
| 22 | 60147-2 | Bracket, Light Socket |
|
- | |||||
| 22 | WP210720 | Rivet (Replaces: 26397-2) |
|
$ 12.14 | |||||
| 23 | W11384469 | Switch, Light (Replaces: 66987-1) |
|
Immediately | $ 33.51 | ||||
| 24 | 54531-8 | Grommet |
|
- | |||||
| 25 | 65039-1 | Cap, Drain Tube |
|
- | |||||
| 26 | 69876-2 | Kickplate (black) |
|
- | |||||
| 27 | 69940-1 | Clip, Kickplate |
|
- | |||||
| 27 | WP489478 | Screw (Replaces: 400017-1) |
|
$ 6.98 | |||||
| 28 | W11117769 | Leg, Leveling (Replaces: 68664-1) |
|
Immediately | $ 16.61 | ||||
| 29 | 60583-1 | Bracket, Switch |
|
- | |||||
| 29 | 402013-1 | Screw |
|
- | |||||
| 30 | 69283-1 | Switch, Heater |
|
- | |||||
| 31 | 69812-1 | Wheel |
|
- | |||||
| 32 | 64965-1 | Pin, Wheel |
|
- | |||||
| 33 | 60216-1 | Clip |
|
- | |||||
| 34 | 68989-1 | Seal, Top Tower |
|
- | |||||
| 35 | 69037-1 | Disc, Crank Cover |
|
- |
