SELECT A DIAGRAM

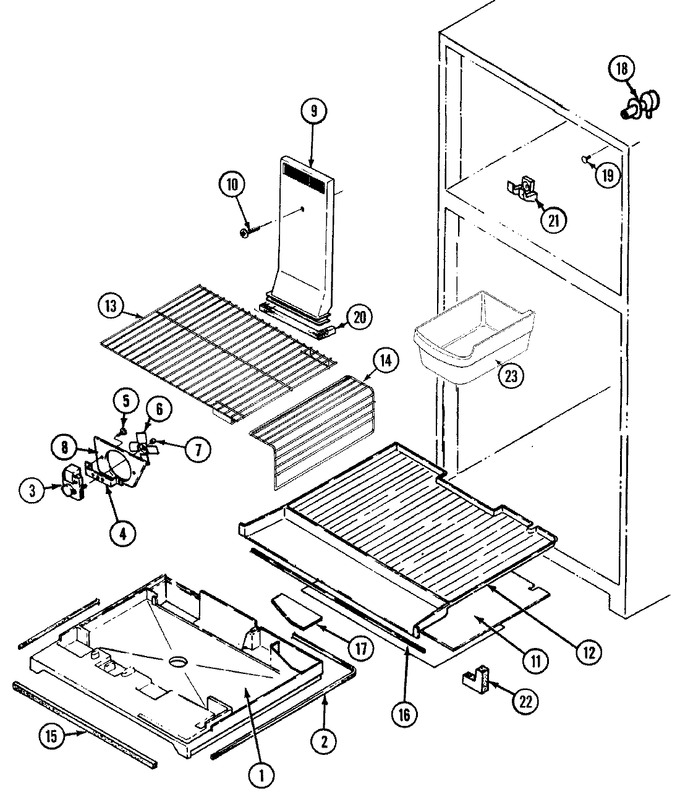

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Optional Ice Maker Kit (ice)


06 - Shelves & Accessories


07 - Unit Compartment & System


08 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	69404-1		Tray, Styrofoam Mullion	10	Appelez-nous	-
2	69414-2		Seal, Mullion Tray	10	Appelez-nous	-
3	69106-2		Motor, Evaporator Fan	10			$ 95.45
3	406062-1		Screw	10	Appelez-nous	-
4	64856-1		Bracket, Fan Motor	10	Appelez-nous	-
5	W11233072		Screw   (Replaces: 400015-36)	10		Immediately	$ 12.62
6	69107-1		Blade, Evaporator Fan	10	Appelez-nous	-
7	420092-900		Washer, Spring	10	Appelez-nous	-
8	60608-2		Orifice, Fan Blade	10	Appelez-nous	-
9	70208-3		Tunnel, Air	10	Appelez-nous	-
10	W11233072		Screw   (Replaces: 400015-31)	10		Immediately	$ 12.62
11	66403-2		Cover, Evaporator	10	Appelez-nous	-
12	69398-1		Bottom, Frz.	10	Appelez-nous	-
13	70322-2		Shelf, Frz.	10	Appelez-nous	-
14	70323-2		Leg, Shelf	10	Appelez-nous	-
15	69562-2		Seal, Mullion Tray (front)	10	Appelez-nous	-
16	69413-2		Magnet	10	Appelez-nous	-
17	61664805		Cover, Plenum	10	Appelez-nous	-
18	68307-1		Grommet, Water Entry	10	Appelez-nous	-
19	67557-2		Plug Button, Air Duct & I/m	10	Appelez-nous	-
20	60478-1		Spacer	10	Appelez-nous	-
21	66101-1		Stud, Shelf	10	Appelez-nous	-
21	400019-1		Screw	10	Appelez-nous	-
22	69563-1		Seal, Frost Chest Bottom	10	Appelez-nous	-
23	WP67001255		Pan, Ice   (Replaces: 68346-1)	10			$ 182.77

    View Diagram in Separate Window       Print Part List
