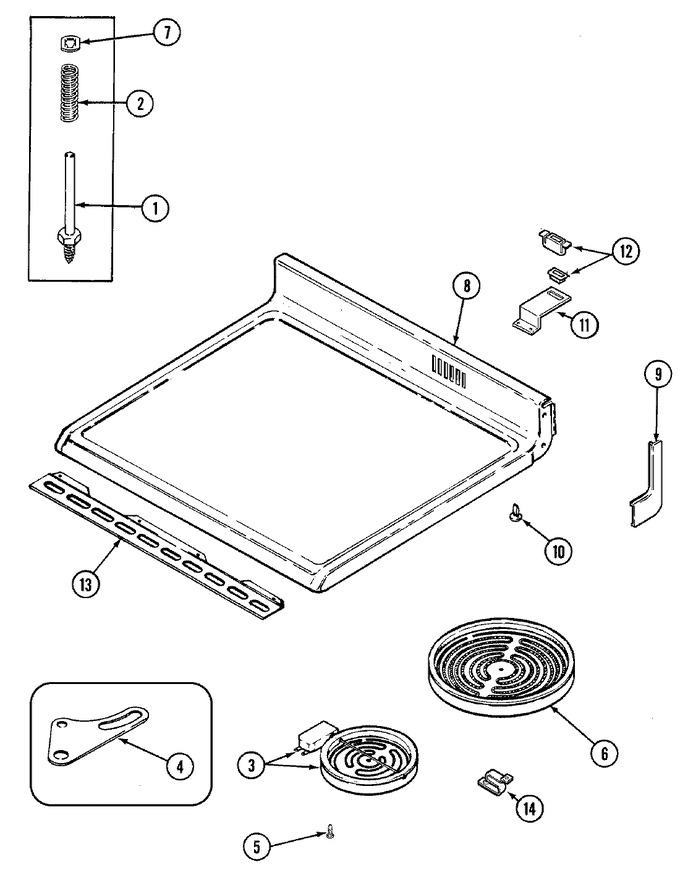

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer
04 - Microwave Components
05 - Oven/base
06 - Stirrer Assembly
07 - Top Assembly
08 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7113P013-60 | Pin, Element | 10 |
|
- | ||||
| 1 | W10124350 | Not Required Part Or See Note | 18 |
|
- | ||||
| 2 | 7803P066-60 | Spring, Element Support | 10 |
|
- | ||||
| 2 | 74001437 | Spring, Ceramic Element | 18 |
|
- | ||||
| 2 | W10124350 | Not Required Part Or See Note | 18 |
|
- | ||||
| 2 | W10124350 | Not Required Part Or See Note | 27 |
|
- | ||||
| 3 | W10823704 | Element W/receptacle (6``) (Replaces: 7406P074-60) | 10 |
|
Immediately | $ 309.01 | |||
| 3 | 12500041 | Limiter Kit (6``) | 10 |
|
- | ||||
| 3 | 74004494 | Limiter | 31 |
|
- | ||||
| 3 | W10823704 | Element W/limiter (6``) (Replaces: 74001011) | 14 |
|
Immediately | $ 309.01 | |||
| 3 | W10823704 | Element W/limiter (6``) (Replaces: 74001011) | 31 |
|
Immediately | $ 309.01 | |||
| 3 | W10823704 | Element W/limiter (6``) (Replaces: 74002653) | 21 |
|
Immediately | $ 309.01 | |||
| 3 | W10823704 | Limiter (6``) (Replaces: 74002651) | 21 |
|
Immediately | $ 309.01 | |||
| 4 | 3819F013-45 | Clip, Element | 10 |
|
- | ||||
| 4 | W10124350 | Not Required Part Or See Note | 18 |
|
- | ||||
| 5 | WP74004005 | Screw (Replaces: 7101P076-60) | 10 |
|
$ 6.95 | ||||
| 6 | 74004494 | Limiter | 31 |
|
- | ||||
| 6 | W10823707 | Element W/limiter (8``) (Replaces: 74001012) | 14 |
|
Immediately | $ 316.13 | |||
| 6 | 12500040 | Limiter Kit (8``) | 10 |
|
- | ||||
| 6 | W10823707 | Element W/limiter (8``) (Replaces: 74001012) | 31 |
|
Immediately | $ 316.13 | |||
| 6 | W10823707 | Element W/receptacle (8``) (Replaces: 7406P073-60) | 10 |
|
Immediately | $ 316.13 | |||
| 6 | W10823707 | Element W/limiter (8``) (Replaces: 74002649) | 21 |
|
Immediately | $ 316.13 | |||
| 6 | 74002652 | Limiter (8``) | 21 |
|
- | ||||
| 7 | W10124350 | Not Required Part Or See Note | 18 |
|
- | ||||
| 7 | 7112P091-60 | Clip, Retainer | 10 |
|
- | ||||
| 8 | 74003079 | Top, Main (blk Glass/alm Top) | 27 |
|
- | ||||
| 8 | 74001237 | Top Assy. (alm Frm/blk Glass) | 10 |
|
- | ||||
| 8 | WA906B | Scraper, Razor (Replaces: 8312P001-60) | 10 |
|
Immediately | $ 4.86 | |||
| 9 | 7746P030-60 | End Cap (rt-blk) | 10 |
|
$ 26.16 | ||||
| 9 | 7746P031-60 | End Cap (lt-blk) | 10 |
|
$ 26.25 | ||||
| 10 | 8270P095-60 | Tape, Double Sided | 10 |
|
- | ||||
| 10 | 8016P013-60 | Glide | 10 |
|
- | ||||
| 10 | 8114P348-60 | Cover, Hinge Support | 10 |
|
- | ||||
| 11 | W10124350 | Not Required Part Or See Note | 27 |
|
- | ||||
| 11 | 3801F312-45 | Bracket, Indicator Light | 10 |
|
- | ||||
| 12 | 7407P097-60 | Light, Indicator (hot Surface) | 10 |
|
- | ||||
| 12 | 74003053 | Light, Indicator | 27 |
|
- | ||||
| 13 | 3801F305-80 | Bracket, Main Top | 10 |
|
- | ||||
| 14 | 74003072 | Support, Ceramic Element | 27 |
|
- |
