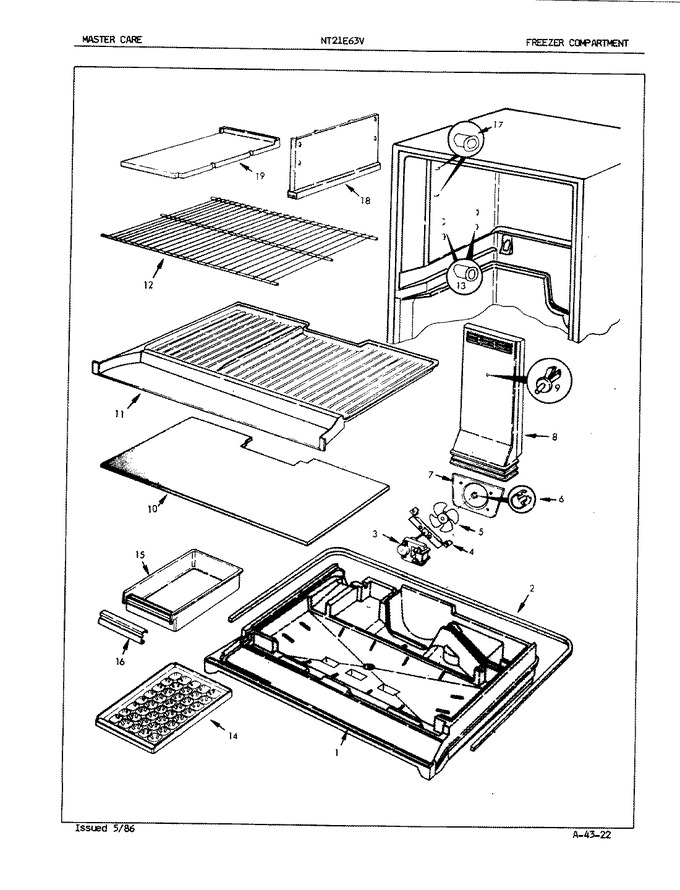

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 60576-3 | Tray, Divider |
|
- | |||||
| 2 | 65518-3 | Seal |
|
- | |||||
| 3 | 406062-1 | Screw |
|
- | |||||
| 3 | 54482-7 | Fan Motor |
|
- | |||||
| 4 | 60565-1 | Wire Harness |
|
- | |||||
| 4 | 29675-30 | Ground Wire |
|
- | |||||
| 4 | 400015-12 | Screw |
|
- | |||||
| 4 | 64856-1 | Bracket, Fan Motor |
|
- | |||||
| 5 | 53707-1 | Blade, Evaporator Fan |
|
- | |||||
| 6 | 420092-900 | Washer, Spring |
|
- | |||||
| 7 | 60608-1 | Fan Shroud |
|
- | |||||
| 8 | 60084-6 | Tunnel, Air |
|
- | |||||
| 9 | 59920-2 | Rivet |
|
- | |||||
| 10 | 60557-2 | Cover, Evaporator----na |
|
- | |||||
| 11 | 60474-3 | Bottom, Frz. |
|
- | |||||
| 12 | 60323-24 | Shelf |
|
- | |||||
| 13 | 65570-1 | Freezer Shelf Cup |
|
- | |||||
| 13 | 60321-1 | Plug |
|
- | |||||
| 14 | WP61002140 | Ice Cube Tray (Replaces: 60112-1) |
|
$ 18.23 | |||||
| 15 | 60579-1 | Pan, Storage |
|
- | |||||
| 16 | 60132-10 | Handle |
|
- | |||||
| 17 | 60313-1 | Cup, Shelf |
|
- | |||||
| 18 | 60116-6 | Divider |
|
- | |||||
| 19 | 60578-1 | Shelf |
|
- |
