Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3205898 Backsheet Appelez-nous -
2 131205100 Screw In-Stock Immediately $ 14.18

3 131238000 Timer Appelez-nous -
4 3161188 Screw Appelez-nous -
5 131047700 Switch-pressure Appelez-nous -
6 131168200 Screw In-Stock Immediately $ 14.18

9 131081200 Switch-temperature Appelez-nous -
12 5303291344 End Cap-lh Special Order $ 59.59

13 5303291352 End Cap-rh Special Order $ 56.49

14 5303289526 Screw Appelez-nous -
15 5303295581 Indicator Appelez-nous -
16 5308014337 Knob - Timer Special Order $ 32.57

18 131313800 Panel-control Appelez-nous -
19 131297306 Bracket-controls Appelez-nous -
20 131166100 Harness Appelez-nous -
24 131081000 Knob-rotary Appelez-nous -
25 5308015493 Spacer-shaft Special Order $ 14.36

26 131197000 Clip Special Order $ 13.62

NI 131243800 Screw-grounding-top Panel Special Order $ 10.46

NI 5303281035 Screw-grounding-body Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

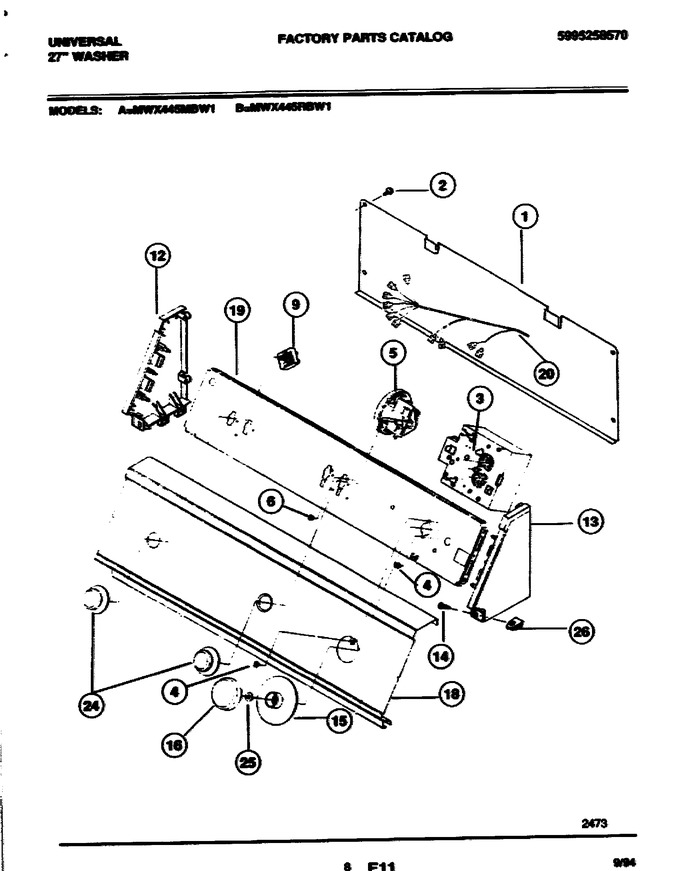

Diagram for MWX445RBW1
