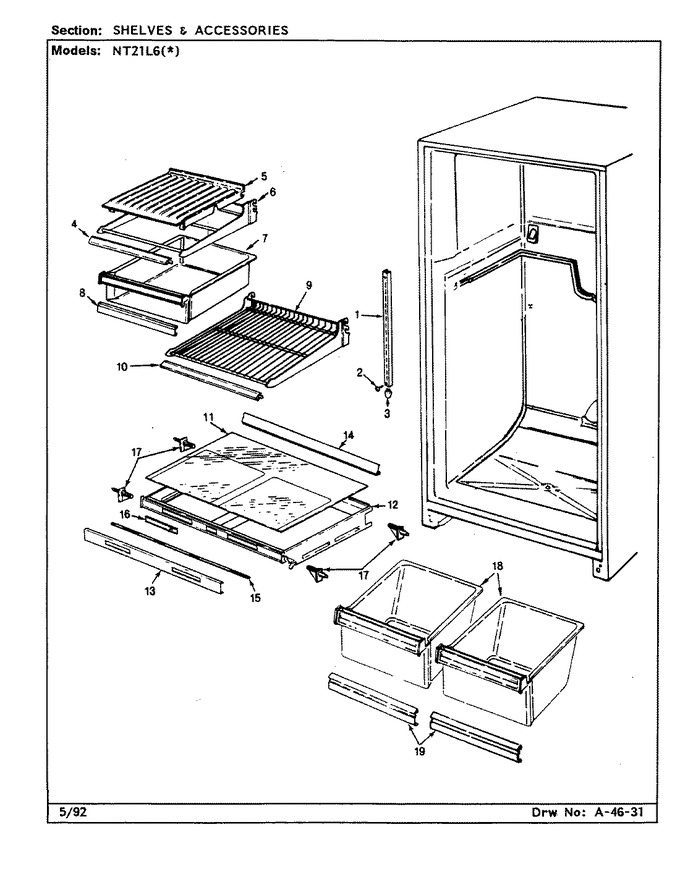

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60096-8		Rail, Shelf Support (rt)		Appelez-nous	-
1	60096-9		Rail, Shelf Support (center)		Appelez-nous	-
1	60096-7		Rail, Shelf Support (lt)		Appelez-nous	-
2	400037-28		Screw		Appelez-nous	-
3	60340-1		End Cap, Center Rail		Appelez-nous	-
4	60414-62		Trim		Appelez-nous	-
5	60075-8		Cover, Meat Pan		Appelez-nous	-
6	60416-15		Frame, Meat Shelf		Appelez-nous	-
7	66524-22		Pan, Meat		Appelez-nous	-
8	66230-13		Trim		Appelez-nous	-
9	60417-23		Shelf, Split		Appelez-nous	-
10	60414-62		Trim		Appelez-nous	-
11	68743-14		Crisper, Glass		Appelez-nous	-
12	69057-2		Shelf, Crisper		Appelez-nous	-
13	68744-4		Trim		Appelez-nous	-
14	68798-1		Trim, Crisper Shelf (rear)		Appelez-nous	-
15	68797-1		Seal		Appelez-nous	-
16	69542-1		Slide, Control		Appelez-nous	-
17	68836-1		Stud, Crisper Support		Appelez-nous	-
18	68163-540		Pan, Crisper		Appelez-nous	-
19	66230-14		Trim		Appelez-nous	-
