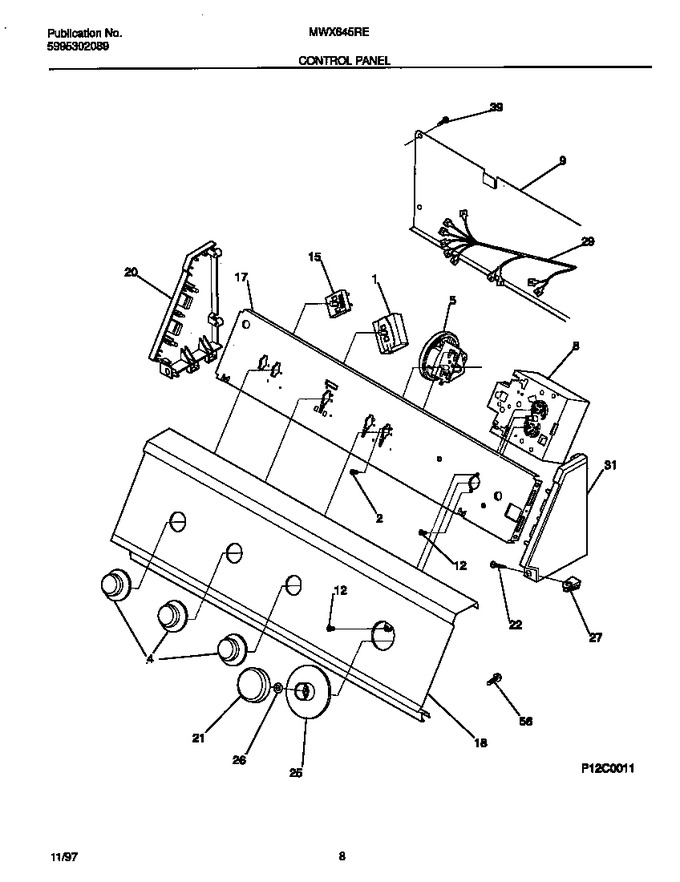

SELECT A DIAGRAM

01 - Cover


02 - Cabinet/top


03 - Motor/tub


04 - Transmission


05 - Control Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131120400		Switch - Speed		Appelez-nous	-
2	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
4	131118603		Knob-rotary, White/gray, (3)		Appelez-nous	-
5	131395500		Switch-pressure				$ 178.11
8	131437000		Timer-washer				$ 360.26
9	3205898		Backsheet-console		Appelez-nous	-
12	3161188		Screw-timer, Pth St, 8-32nc-2a X .25		Appelez-nous	-
15	131081200		Switch-temperature		Appelez-nous	-
17	131297306		Bracket-controls		Appelez-nous	-
18	131508000		Panel-control, White		Appelez-nous	-
20	5303291343		End Cap, White, Lh		Appelez-nous	-
21	131118401		Knob-timer, White				$ 58.76
22	131266320		Screw-18 X 1.250 Poh Ab Alm Hd, 18 X 1.250, Poh Ab Alm H		Appelez-nous	-
25	131118503		Dial-timer, White				$ 27.54
26	5308015493		Spacer-timer Shaft				$ 14.36
27	131197000		Clip-control Panel				$ 13.62
29	131653800		Harness-main		Appelez-nous	-
31	5303291351		End Cap, White, Rh		Appelez-nous	-
39	131205100		Screw,no.8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
56	131243800		Screw, Pan Hd Locking, 8-32ca X 0.375, Cr/sq Drive				$ 10.46

    View Diagram in Separate Window       Print Part List
