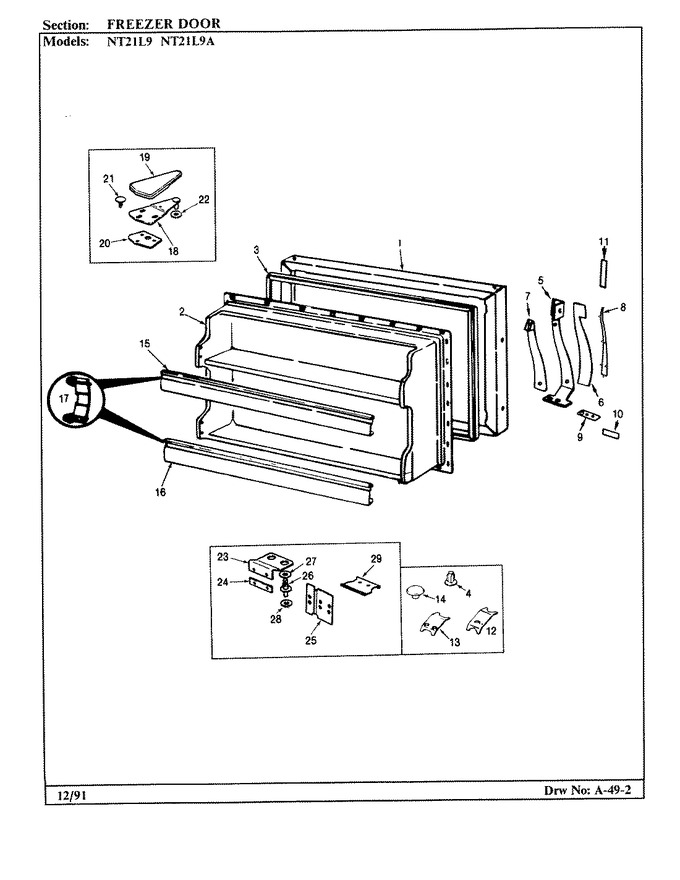

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 68474-3-AM | Panel, Frz. Door (alm) |
|
- | |||||
| 1 | RA95056-1 | Door Insulation Kit |
|
- | |||||
| 2 | 65928-5 | Liner, Frz. Door |
|
- | |||||
| 2 | 65275-5 | Screw |
|
- | |||||
| 3 | 66199-5 | Gasket, Frz. Door |
|
- | |||||
| 4 | 55782-6 | Plug Button (almond) |
|
- | |||||
| 5 | 66255-3 | Door Handle |
|
- | |||||
| 5 | 9986-122 | Screw |
|
- | |||||
| 6 | 68016-5 | Handle Insert, Front |
|
- | |||||
| 7 | 60445-4 | Insert, Handle (back) |
|
- | |||||
| 8 | 9986-112 | Screw |
|
- | |||||
| 8 | 68017-3 | Insert, Vinyl Clad |
|
- | |||||
| 9 | 68776-1 | Shim Handle----na |
|
- | |||||
| 10 | 60603-14 | Insert, Handle |
|
- | |||||
| 11 | 60453-22 | Handle Trim Extension |
|
- | |||||
| 12 | 56209-3 | Clip, Stop Screw |
|
- | |||||
| 13 | 60123-2 | Clip, Stop Screw |
|
- | |||||
| 14 | 67634-3 | Plug Button, Hinge Cup (alm) |
|
- | |||||
| 15 | WP61003045 | Trim, Shelf (Replaces: 68375-17) |
|
$ 129.55 | |||||
| 16 | WP61003045 | Trim, Shelf (Replaces: 68375-11) |
|
$ 129.55 | |||||
| 17 | WP65245-1 | Retainer, Shelf Trim (Replaces: 65245-1) |
|
$ 9.39 | |||||
| 18 | 53709-20 | Hinge, Upper |
|
- | |||||
| 19 | 65003-3 | Cover, Upper Hinge (alm) |
|
- | |||||
| 20 | 65031-1 | Shim, Upper Hinge |
|
- | |||||
| 21 | 56144-9 | Plug Button, Hinge Screw (alm) |
|
- | |||||
| 22 | WP3-24838-048 | Screw (Replaces: 9986-87) |
|
$ 7.00 | |||||
| 22 | 54233-1 | Washer |
|
$ 7.71 | |||||
| 23 | 68811-2 | Hinge, Center |
|
- | |||||
| 24 | 68812-1 | Shim, Center Hinge |
|
- | |||||
| 25 | 68377-1 | Tapping Plate, Center Hinge |
|
- | |||||
| 25 | 65275-24 | Screw |
|
- | |||||
| 26 | 67322-1 | Pin, Center Hinge |
|
- | |||||
| 27 | 67483-1 | Washer, Center Hinge (upper) |
|
- | |||||
| 28 | 54233-2 | Washer |
|
- | |||||
| 29 | 60030-1 | Door Stop |
|
- | |||||
| 29 | 9986-122 | Screw |
|
- |
