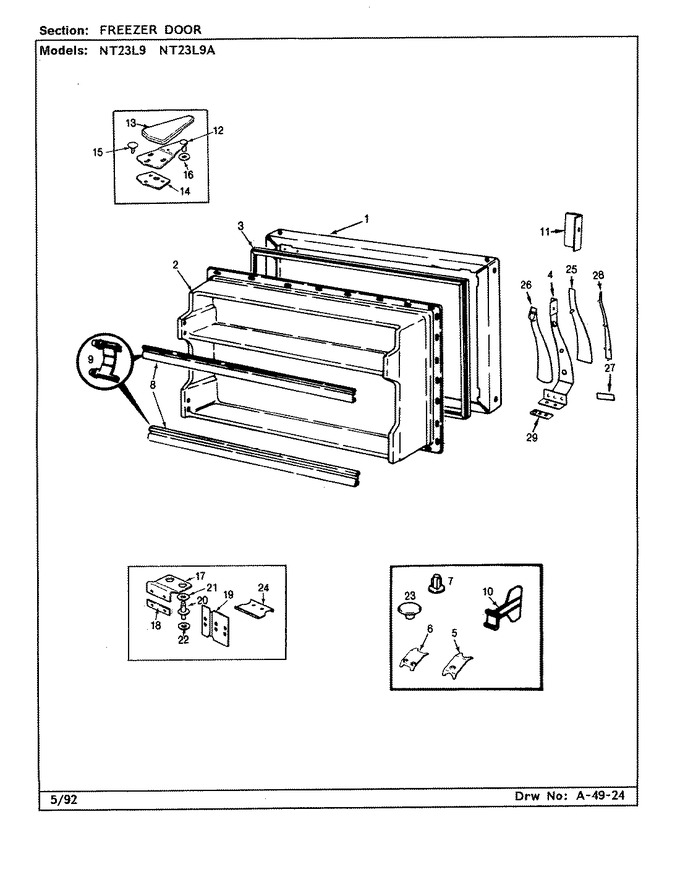

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	RA95056-1		Door Insulation Kit		Appelez-nous	-
1	68476-1-AM		Panel, Outer (alm)		Appelez-nous	-
2	65936-4		Liner, Door		Appelez-nous	-
2	65275-5		Screw		Appelez-nous	-
3	66199-7		Gasket, Door		Appelez-nous	-
4	66255-3		Door Handle		Appelez-nous	-
4	65275-57		Screw		Appelez-nous	-
5	56209-3		Clip, Stop Screw		Appelez-nous	-
6	60123-2		Clip, Stop Screw		Appelez-nous	-
7	55782-6		Plug Button (almond)		Appelez-nous	-
8	WP61003045		Trim, Frz Dr Shelf   (Replaces: 68375-13)				$ 129.55
9	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
10	64097-11		Organizer, Shelf		Appelez-nous	-
11	60453-22		Handle Trim Extension		Appelez-nous	-
12	53709-20		Hinge, Upper		Appelez-nous	-
12	WP3-24838-048		Screw   (Replaces: 65275-52)				$ 7.00
13	65003-3		Cover, Upper Hinge (alm)		Appelez-nous	-
14	65031-1		Shim, Upper Hinge		Appelez-nous	-
15	56144-9		Plug Button, Hinge Screw (alm)		Appelez-nous	-
16	54233-2		Washer		Appelez-nous	-
17	68811-2		Hinge, Center		Appelez-nous	-
18	68812-1		Shim, Center Hinge		Appelez-nous	-
19	65275-55		Screw		Appelez-nous	-
19	68377-1		Tapping Plate, Center Hinge		Appelez-nous	-
20	67322-1		Pin, Center Hinge		Appelez-nous	-
21	67483-1		Washer, Center Hinge (upper)		Appelez-nous	-
22	54233-1		Washer				$ 7.71
23	67634-3		Plug Button, Hinge Cup (alm)		Appelez-nous	-
24	68988-1		Stop, Door		Appelez-nous	-
24	65275-48		Screw		Appelez-nous	-
25	68016-5		Handle Insert, Front		Appelez-nous	-
26	60445-4		Insert, Handle (back)		Appelez-nous	-
27	60603-13		Insert, Handle		Appelez-nous	-
28	68017-3		Insert, Vinyl Clad		Appelez-nous	-
29	65275-53		Screw		Appelez-nous	-
29	68776-1		Shim Handle----na		Appelez-nous	-
