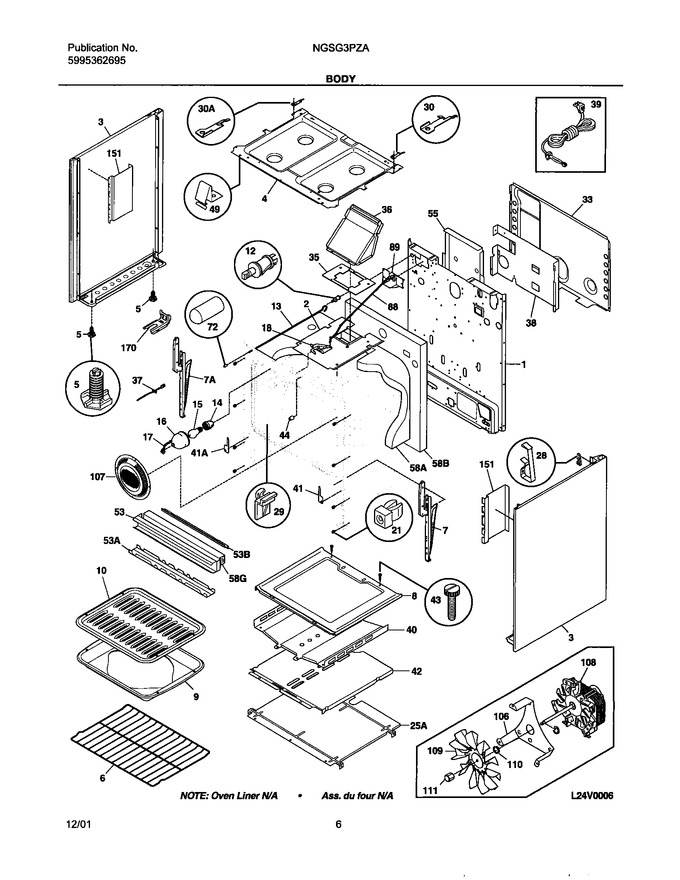

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316029416		Panel,main Back		Appelez-nous	-
2	3131314		Shield-oven-top		Appelez-nous	-
3	316230104		Panel,bodyside ,black ,rh		Appelez-nous	-
3	316230105		Panel,bodyside ,black ,lh		Appelez-nous	-
4	316201402		Burner Box		Appelez-nous	-
5	316129200		Screw,leveling ,plastic ,with Stop				$ 10.92
6	316067902		Rack,oven			Immediately	$ 103.10
7	316216500		Hinge,oven Door ,rh   (Replaces: 316212900)				$ 80.33
8	5303300701		Panel-oven Bottom		Appelez-nous	-
9	316081900		Pan,broiler				$ 65.89
10	316082000		Insert-broiler Pan				$ 68.85
13	316238800		Rod,light Switch		Appelez-nous	-
14	316116400		Receptacle,oven Light			Immediately	$ 56.10
15	40A15		Bulb/lamp,oven Light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 14.18
17	316087500		Retainer,lens				$ 56.70
21	3014099		Spacer,bodyside				$ 3.62
28	3011813		Clip,wire ,bodyside				$ 14.79
29	3051162		Glide-drawer, Front			Immediately	$ 8.22
30	316217700		Bracket,hinge ,rh ,main Top				$ 13.42
33	316232800		Shield-rear Wall		Appelez-nous	-
35	316542102		Gasket,flue   (Replaces: 316116600)				$ 12.13
36	316133002		Flue		Appelez-nous	-
38	316051700		Shield-heat		Appelez-nous	-
39	5304534377		Cord-electric Power   (Replaces: 3202006)				$ 26.85
40	3200836		Shield-heat Baffle		Appelez-nous	-
41	316233400		Cover,hinge Cutout ,rh				$ 67.99
42	5303288578		Shield-bake Burner				$ 156.19
43	316282700		Screw,8-18 X 1.438 ,oven Bottom   (Replaces: 3131732)				$ 9.93
44	316246500		Spacer,oven Door				$ 34.39
49	316234200		Clip,maintop Mtg ,(2)				$ 46.78
53	5303288579		Shield,main Front		Appelez-nous	-
55	316107800		Shield,flue		Appelez-nous	-
72	316234500		Cover,rod End ,light Switch				$ 14.39
88	316232702		Rod,auto Latch   (Replaces: 316232700)				$ 12.89
106	316026600		Bracket,motor Mtg		Appelez-nous	-
107	316026701		Cover,fan				$ 408.89
109	318398302		Blade,fan   (Replaces: 316136400)			Immediately	$ 29.11
110	316008401		Washer,fan Motor   (Replaces: 316136500)				$ 11.34
111	316136600		Nut,fan Retainer			Immediately	$ 19.13
151	316239300		Shield,bodyside		Appelez-nous	-
170	316112005		Bracket,anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
170	316112005		Kit-anti-tip Bracket (complete W/template & Screw)   (Replaces: 5303935180)			Immediately	$ 18.91
170	316112500		Template,anti-tip				$ 3.55
170	316116000		Screw`concrete Tpg `1.75 Inch ,anti-tip Brkt				$ 12.89
25A	5303288580		Shield-heat, Lower		Appelez-nous	-
30A	316217701		Bracket,hinge ,lh ,main Top				$ 13.00
41A	316233500		Cover-hinge,cutout ,lh				$ 16.96
53A	08067992		Shield,insulation ,front Frame		Appelez-nous	-
53B	316211100		Bracket,air Dam		Appelez-nous	-
58A	316047708		Insulation,2`` ,oven Wrapper				$ 222.56
58B	316218302		Insulation,oven Back		Appelez-nous	-
58G	08067973		Insulation, Main Front				$ 51.74
7A	316212901		Hinge,oven Door ,lh		Appelez-nous	-
F108	316234601		Motor-fan				$ 454.70
F12	316027701		Switch-oven Light		Appelez-nous	-
F18	316405800		Latch,oven Door   (Replaces: 316213900)			Immediately	$ 56.74
F37	316233903		Probe-oven Temp   (Replaces: 316233900)			Immediately	$ 57.29
F89	316135202		Motor,latch/lock		Appelez-nous	-
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
NI	316253401		Wiring Harness,main		Appelez-nous	-
NI	316231800		Cover,hole ,conv. Element		Appelez-nous	-
NI	5303321321		Paint,touch-up ,black   (Replaces: 5303305345)			Immediately	$ 21.97
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312				$ 6.62
NI	5303288570		Screw,hd Shldr Sqdr `8-18 X 1/2 ,heat Shield		Appelez-nous	-
