01 - Base
02 - Cabinet
03 - Control Panel
04 - Top
05 - Transmission, Dual Drive
06 - Tub
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:

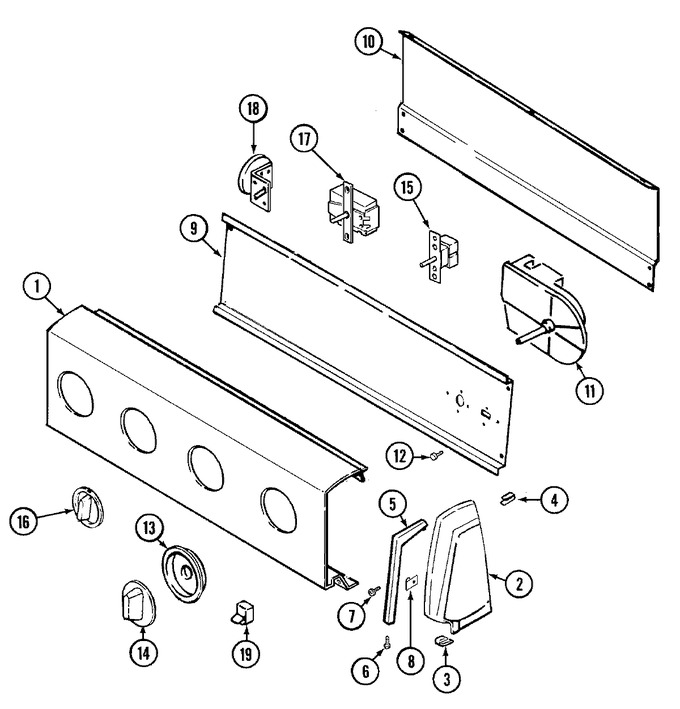

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 25-7702 | Speedclip, End Cap To Ctrl Pnl | 10 |
|
- | ||||
| 1 | 21001487 | Panel, Control (alm) | 10 |
|
- | ||||
| 1 | 25-7793 | Screw | 10 |
|
- | ||||
| 2 | 35-2669 | Cap, End (lt)(wht) | 10 |
|
- | ||||
| 2 | 35-2668 | Cap, End (rt)(wht) | 10 |
|
- | ||||
| 3 | 25-7851 | Speedclip, End Cap To Top | 10 |
|
- | ||||
| 3 | 25-7697 | Screw | 10 |
|
- | ||||
| 4 | 25-7852 | Speedclip, Rr Shld To End Cap | 10 |
|
- | ||||
| 4 | WP33002917 | Screw (Replaces: 25-7435) | 10 |
|
Immediately | $ 6.90 | |||
| 5 | 31001056 | Trim, Endcap (rt)(alm) | 10 |
|
- | ||||
| 5 | 31001057 | Trim, Endcap (lt)(alm) | 10 |
|
- | ||||
| 6 | 25-7760 | Screw | 10 |
|
- | ||||
| 7 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 8 | 25-7702 | Speedclip, End Cap To Ctrl Pnl | 10 |
|
- | ||||
| 9 | 31001193 | Pad, Shield | 10 |
|
- | ||||
| 9 | 31001128 | Shield, Control | 10 |
|
- | ||||
| 9 | 53-2504 | Spacer, Control Shield | 10 |
|
- | ||||
| 10 | 35-2688 | Shield, Control Panel (rear) | 10 |
|
- | ||||
| 10 | 25-7853 | Retaining Ring | 10 |
|
- | ||||
| 10 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 10 | WP12990527 | Screw, Sems (Replaces: 25-3457) | 10 |
|
Immediately | $ 7.15 | |||
| 11 | 21001325 | Timer | 10 |
|
$ 174.43 | ||||
| 12 | WP3400094 | Screw, Timer (Replaces: 31001029) | 10 |
|
$ 7.14 | ||||
| 13 | 21001240 | Bezel & Ring Assy. (alm) | 10 |
|
- | ||||
| 14 | 21001241 | Knob, Timer (alm) | 10 |
|
- | ||||
| 15 | 21001140 | Switch, Speed | 10 |
|
- | ||||
| 16 | 21001242 | Knob, Selector (alm) | 10 |
|
- | ||||
| 17 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 17 | 21001226 | Switch, Water Temp. 4 Position | 10 |
|
- | ||||
| 18 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 18 | WP21001554 | Switch, Water Level (Replaces: 35-3691) | 10 |
|
$ 143.59 | ||||
| 19 | 74008765 | Switch, Rocker (alm) (Replaces: 21001116) | 10 |
|
$ 79.50 | ||||
| 20 | 21001419 | Manual, Laundering Tips | 10 |
|
- | ||||
| 21 | 21001417 | Manual, Use & Care | 10 |
|
- | ||||
| 22 | 12002417 | Wire Kit (herrin Laundry) | 10 |
|
$ 26.25 |
