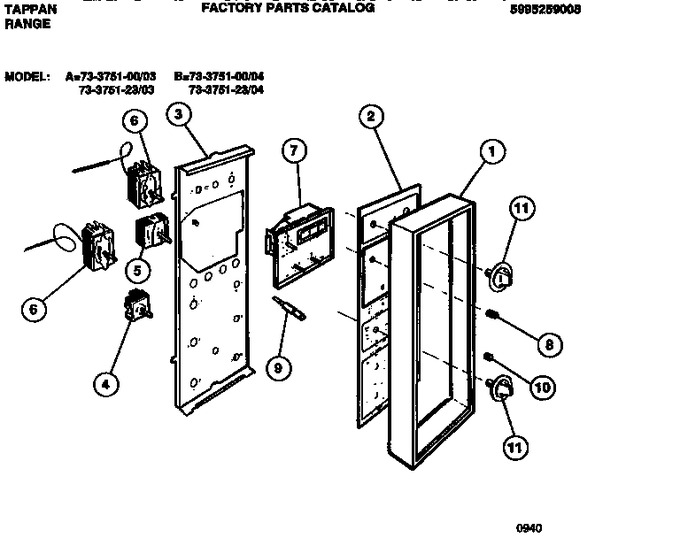

SELECT A DIAGRAM
01 - Range-electric
02 - Oven Controls
03 - Control Panel
04 - Electric Cooktop
05 - Door
06 - Door
07 - Elements
08 - Boody
09 - Cavity
10 - Drawer
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316013200 | Trim-frame |
|
- | |||||
| 2 | 5303285177 | Glass-control Pnl |
|
- | |||||
| 3 | 08014778 | Panel-control Mtg |
|
- | |||||
| 4 | 5303285143 | Switch-s/u Large |
|
- | |||||
| 5 | 5303051315 | Switch-selector 6 Pos |
|
- | |||||
| 6 | 5303202782 | Thermostat-oven Upper |
|
- | |||||
| 7 | 5303284809 | Clock |
|
- | |||||
| 8 | 3131472 | Knob-clock (3) |
|
- | |||||
| 9 | 5308037896 | Indicator Light |
|
$ 39.75 | |||||
| 10 | 5308010401 | Bushing-control Panel Glass |
|
- | |||||
| 11 | 5303285138 | Knob-switch S/u (4) |
|
- | |||||
| 11A | 5303285139 | Knob-selector 6 Pos |
|
- | |||||
| 11B | 5303285140 | Knob-thermostat Lwr |
|
- | |||||
| 11C | 5303285178 | Knob-thermostat Upper |
|
- | |||||
| 2A | 08011713 | Fastener-clock (4) (non-illustrated) |
|
- | |||||
| 4A | 5303935086 | Switch-s/u Small (Replaces: 5303285142) |
|
Immediately | $ 51.95 | ||||
| 6A | 5303051320 | Thermostat-oven Lower |
|
- | |||||
| 9A | 5303091462 | Ind Light-250v (2) |
|
- |
