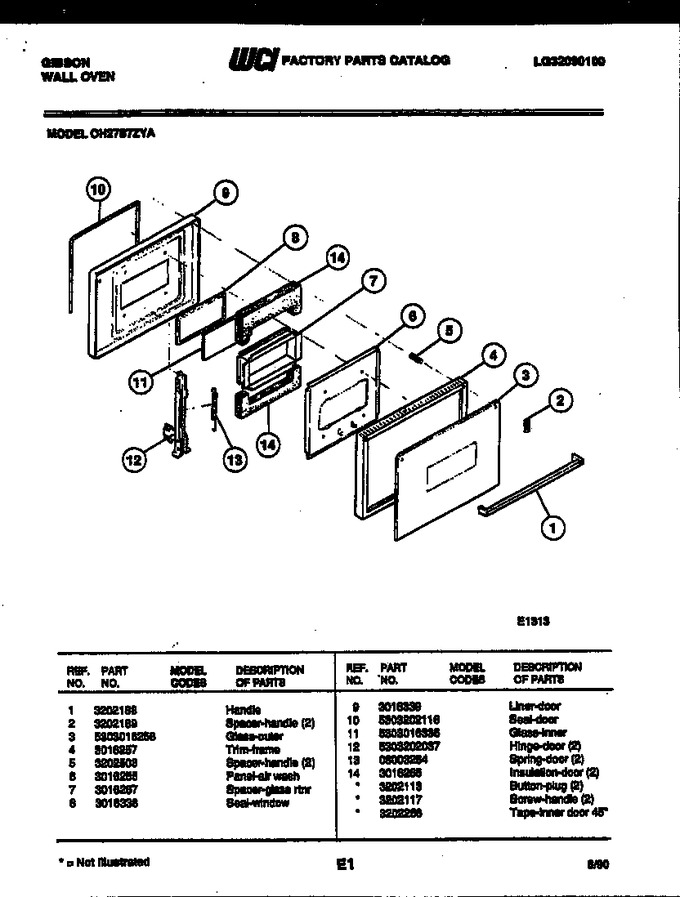

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3202188 | Handle |
|
- | |||||
| 2 | 3202189 | Spacer-handle (2) |
|
- | |||||
| 3 | 5303016258 | Glass-outer |
|
- | |||||
| 4 | 3016257 | Trim-frame |
|
- | |||||
| 5 | 3202508 | Spacer - Handle (2) |
|
- | |||||
| 6 | 3016255 | Panel - Air Wash |
|
- | |||||
| 7 | 3016267 | Spacer-glass Rtnr |
|
- | |||||
| 8 | 3016338 | Seal-window |
|
$ 43.20 | |||||
| 9 | 3016339 | Liner-door |
|
- | |||||
| 10 | 5303202116 | Seal-door |
|
$ 136.08 | |||||
| 11 | 5303016336 | Glass-inner |
|
- | |||||
| 12 | 5303202037 | Hinge-door (2) |
|
- | |||||
| 13 | 08003264 | Spring-oven Door |
|
- | |||||
| 14 | 3016265 | Insulation-door (2) |
|
- |
