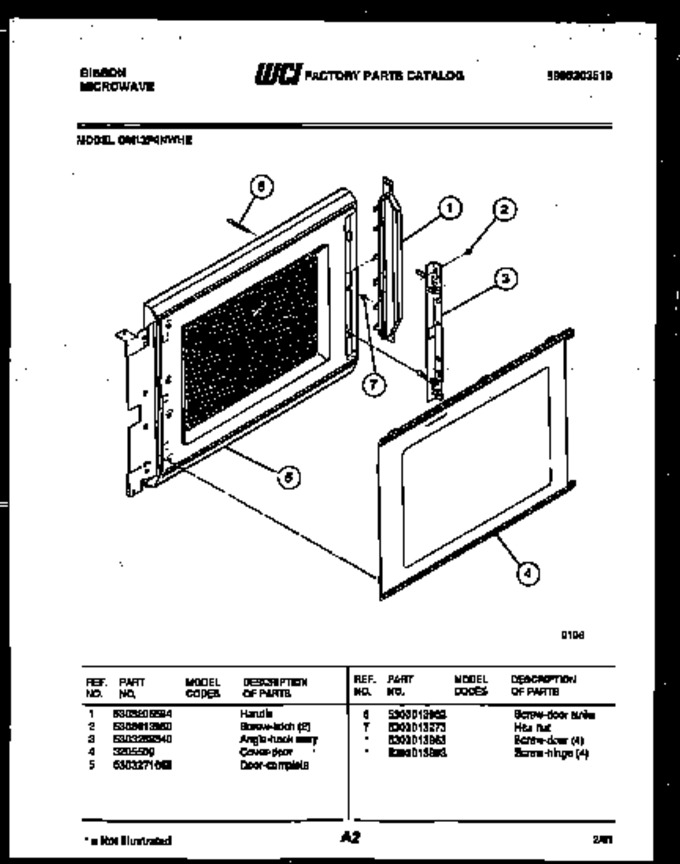

02 - Door Parts
03 - Control Panel
04 - Body, Motor And Electrical Parts
05 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303205594 | Handle |
|
- | |||||
| 2 | 5303013960 | Screw-latch (2) |
|
- | |||||
| 3 | 5303269840 | Angle-hook Assy |
|
- | |||||
| 4 | 3205509 | Cover - Door |
|
- | |||||
| 5 | 5303271668 | Door-complete |
|
- | |||||
| 6 | 5303013962 | Screw-door Strike |
|
- | |||||
| 7 | 5303013273 | Hex Nut |
|
- | |||||
| *45797 | 5303013882 | Screw-hinge (4) |
|
- | |||||
| *45797 | 5303013963 | Screw-door (4) |
|
- |
