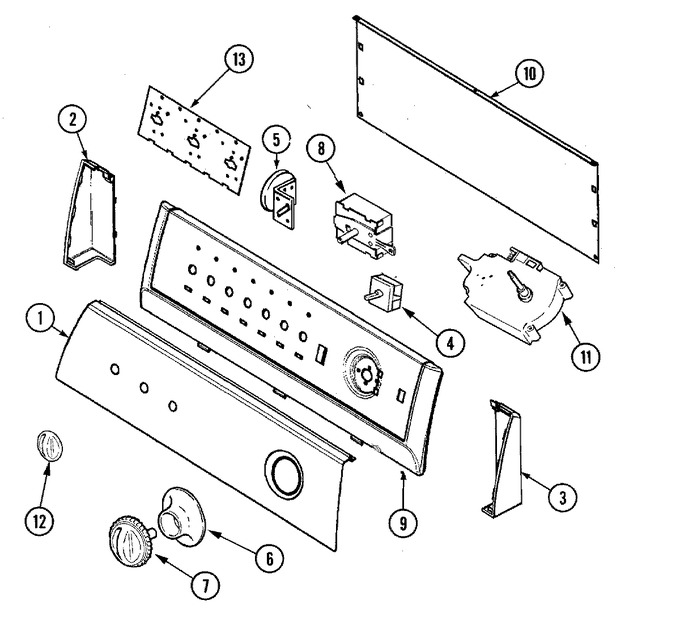

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	21001765		Panel, Control	10	Appelez-nous	-
2	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
2	21001519		Endcap (wht-lt)	10	Appelez-nous	-
3	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
3	21001523		Endcap (wht-rt)	10	Appelez-nous	-
4	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
4	21001226		Switch, Water Temp. 4 Position	10	Appelez-nous	-
5	WP21001554		Switch, Water Level   (Replaces: 21001554)	10			$ 143.59
5	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
6	21001600		Skirt, Timer (wht)	10			$ 88.84
7	WP21001972		Knob, Timer (wht)   (Replaces: 21001594)	10			$ 48.17
8	21001140		Switch, Speed	10	Appelez-nous	-
9	21001604		Frame, Control Panel (wht)	10	Appelez-nous	-
10	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
10	21001527		Shield, Rear (back Panel)	10	Appelez-nous	-
10	25-7933		Ring, Retaining	10	Appelez-nous	-
10	WP12990527		Screw, Sems   (Replaces: 25-3457)	10		Immediately	$ 7.15
11	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
11	21001764		Timer	10	Appelez-nous	-
12	21001525		Knob, Selector (wht)	10	Appelez-nous	-
13	21001603		Shield, Control (3 Pos.)	10	Appelez-nous	-
14	21001762		Manual, Use & Care	10	Appelez-nous	-
14	22003218		Laundering Tips (trilingual)	10	Appelez-nous	-
15	12002417		Wire Kit (herrin Laundry)	10			$ 26.25
