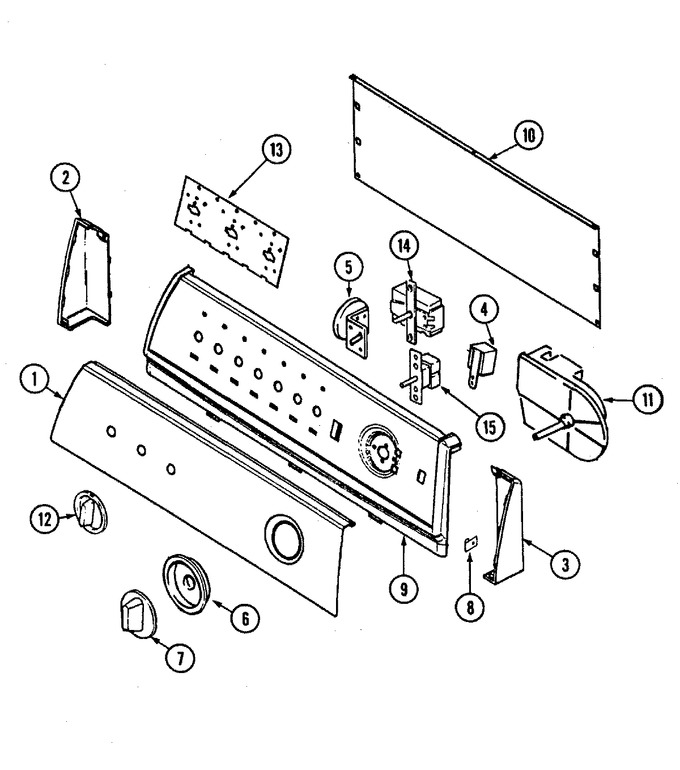

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	21001723		Panel, Control	10	Appelez-nous	-
2	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
2	21001641		End Cap (lt-wht)	10	Appelez-nous	-
3	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
3	21001630		End Cap (rt-wht)	10	Appelez-nous	-
4	21001491		Switch, Water Temperature	10	Appelez-nous	-
4	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
5	21001625		Switch, Water Level	10	Appelez-nous	-
5	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
6	21001238		Skirt & Ring Assy. (wht)	10	Appelez-nous	-
7	21001237		Knob, Timer (wht)	10	Appelez-nous	-
8	25-7851		Speedclip, End Cap To Top	10	Appelez-nous	-
9	21001640		Frame (wht)	10	Appelez-nous	-
10	25-7933		Ring, Retaining	10	Appelez-nous	-
10	21001527		Shield, Rear (back Panel)	10	Appelez-nous	-
10	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
10	WP12990527		Screw, Sems   (Replaces: 25-3457)	10		Immediately	$ 7.15
11	WP3400094		Screw, Timer   (Replaces: 31001029)	10			$ 7.14
11	21001488		Timer (aust)	10	Appelez-nous	-
12	21001409		Knob, Selector (wht)	10	Appelez-nous	-
13	21001720		Washer, Rubber	10	Appelez-nous	-
13	21001721		Washer, Rubber	10	Appelez-nous	-
13	21001603		Shield, Control (3 Pos.)	10	Appelez-nous	-
13	53-2504		Spacer, Control Shield	10	Appelez-nous	-
14	21001687		Switch, Speed (3 Pos.)	10	Appelez-nous	-
15	31001443		Switch, Two Pos (on/off)rotary	10	Appelez-nous	-
16	21001724		Manual, Use & Care	10	Appelez-nous	-
16	21001419		Manual, Laundering Tips	10	Appelez-nous	-
17	12002417		Wire Kit (herrin Laundry)	10			$ 26.25

    View Diagram in Separate Window       Print Part List
