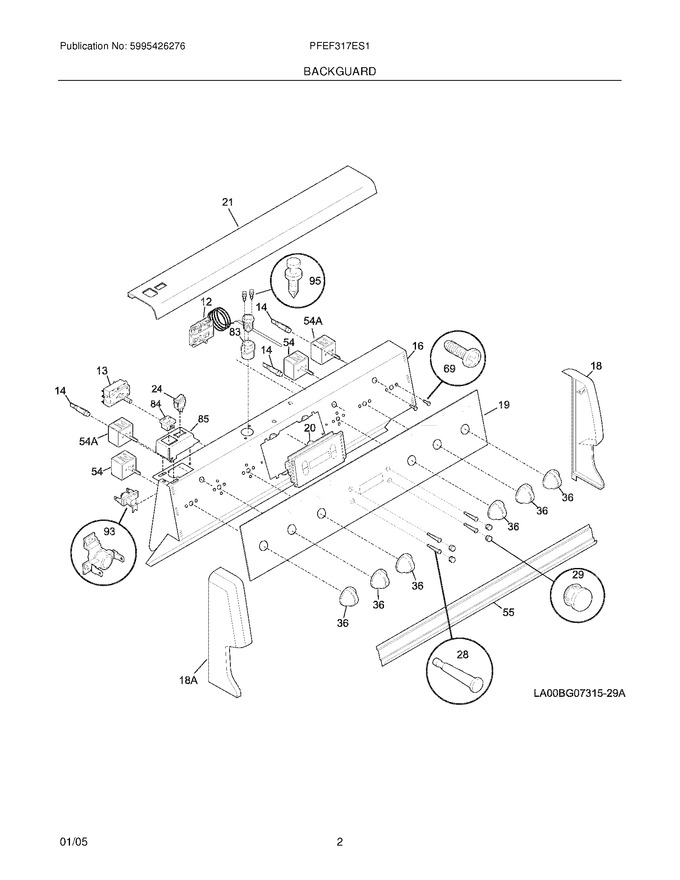

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318117555		Plate,instrument Mtg		Appelez-nous	-
18	318118800		End Cap,white ,rh		Appelez-nous	-
19	318001165		Panel,control ,glass ,white		Appelez-nous	-
21	318190012		Trim,canopy ,white ,backsplash Top				$ 31.61
28	5304410865		Tube,timer Knob				$ 8.51
29	318017710		Knob,clock/timer ,white				$ 27.51
36	318197620		Knob,control ,white		Appelez-nous	-
55	318118720		Trim,backsplash ,white ,bottom				$ 33.05
69	5303288565		Screw,8-32 X 0.188   (Replaces: 5303323134)				$ 3.12
85	318171710		Support,outlet/switch		Appelez-nous	-
95	5303324521		Clip,fuse Holder Mtg		Appelez-nous	-
18A	318118801		End Cap,white ,lh		Appelez-nous	-
F12	318059311		Thermostat,oven				$ 72.00
F13	318057912		Switch,selector				$ 30.14
F14	318044824		Light,indicator ,250v ,(2)		Appelez-nous	-
F20	316120500		Clock-timer		Appelez-nous	-
F24	318037513		Switch,rocker ,white ,oven Light				$ 62.11
F54	318293813		Switch,surface Unit ,small   (Replaces: 318220063)			Immediately	$ 82.66
F54A	318293814		Switch,surface Unit ,large   (Replaces: 318220064)			Immediately	$ 93.29
F83	318115601		Fuse,15 Amp ,w/fuse Holder				$ 33.86
F84	318146820		Outlet,electrical ,white-glossy ,combined		Appelez-nous	-
F93	318003608		Thermostat,safety ,backguard				$ 1.42
NI	154079601		Nut,keps ,10-24   (Replaces: 3201885)				$ 0.41
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89

    View Diagram in Separate Window       Print Part List
