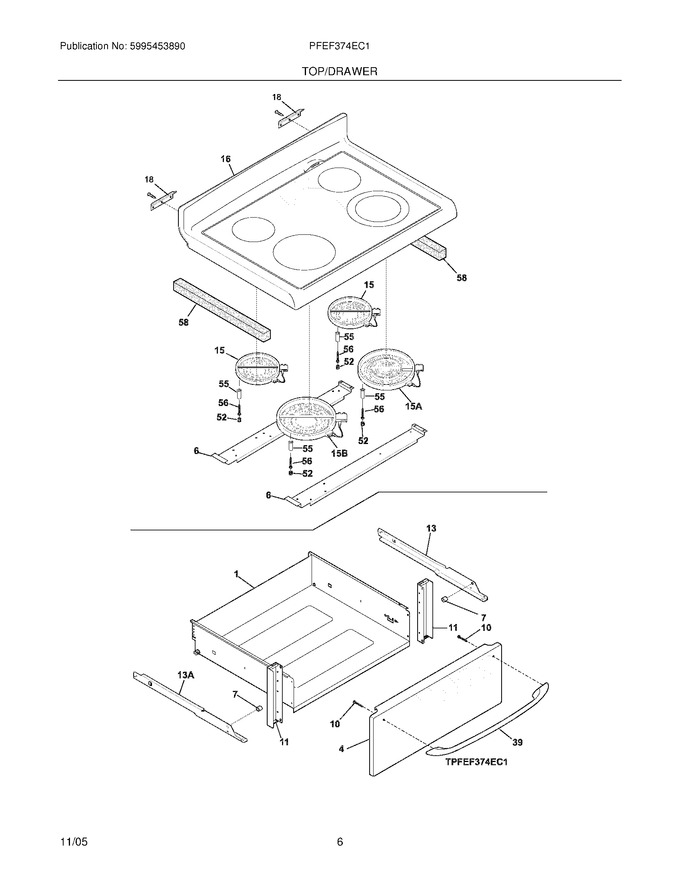

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer   (Replaces: 318107105)			Immediately	$ 143.39
4	318311700		Panel,drawer ,stainless ,front		Appelez-nous	-
6	318180716		Bracket,element		Appelez-nous	-
7	318332200		Roller,nylon ,(2)		Appelez-nous	-
10	5304452028		Screw,handle Mtg ,10-14 X 1/2 ,(2)				$ 11.02
11	318311501		Bracket,drawer Panel ,(2)		Appelez-nous	-
13	318018100		Channel-drawer,rh			Immediately	$ 30.01
16	318154584		Maintop,frame/glass ,black		Appelez-nous	-
18	318074410		Hinge,main Top Panel ,(2)				$ 1.47
39	316270200		Handle,door ,black				$ 136.40
52	5303317177		Spring-element Mtg				$ 12.74
55	5303317178		Spacer-element				$ 2.42
56	5303317179		Screw-element, 6 X 3/4				$ 2.42
58	318285045		Insulation,1.25`` Thick ,19 X 3		Appelez-nous	-
13A	318018101		Channel-drawer,lh				$ 63.11
F15	318198817		Element,surface ,6`` ,1200 W ,(2)			Immediately	$ 192.78
F15A	318198926		Element,surface ,6/9 ,1700/2700w ,dual Radiant				$ 157.28
F15B	318198819		Element,surface ,9`` ,2500 W				$ 256.01
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303300265		Screw,8-18 X 1/2 ,(2)				$ 15.17
NI	5303323137		Screw,8-32 X 1/4   (Replaces: 5303305528)				$ 11.88
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	318199344		Harness,wiring ,cooktop		Appelez-nous	-
NI	318231829		Harness,wiring ,limiter		Appelez-nous	-
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	318014800		Spacer				$ 16.59
NI	5303325171		Washer,plastic		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
