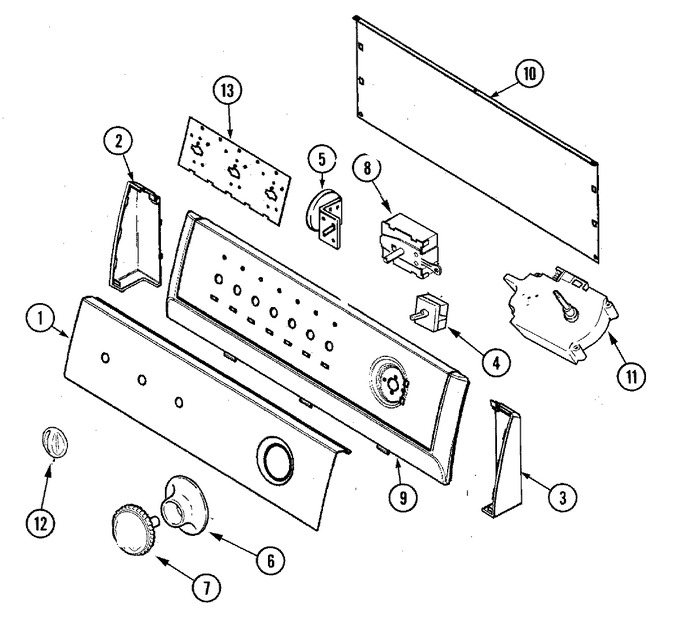

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	21001897		Panel, Control (wht)	10	Appelez-nous	-
2	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
2	21001641		End Cap (lt-wht)	10	Appelez-nous	-
3	21001630		End Cap (rt-wht)	10	Appelez-nous	-
3	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
4	21001491		Switch, Water Temperature	10	Appelez-nous	-
4	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
5	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
5	21001882		Switch, Pressure (emz)	10	Appelez-nous	-
6	21001600		Skirt, Timer (wht)	10			$ 88.84
7	WP21001972		Knob, Timer (wht)   (Replaces: 21001594)	10			$ 48.17
8	21001898		Switch, Speed (3 Pos)	10			$ 21.78
8	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
9	31001743		Frame (wht) / Console	10	Appelez-nous	-
10	21001527		Shield, Rear (back Panel)	10	Appelez-nous	-
11	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
11	21001914		Timer	10	Appelez-nous	-
12	21001525		Knob, Selector (wht)	10	Appelez-nous	-
13	21001900		Harness, Wire	10	Appelez-nous	-
13	21001457		Fuse	10			$ 22.46
13	21001458		Holder, Fuse	10	Appelez-nous	-
