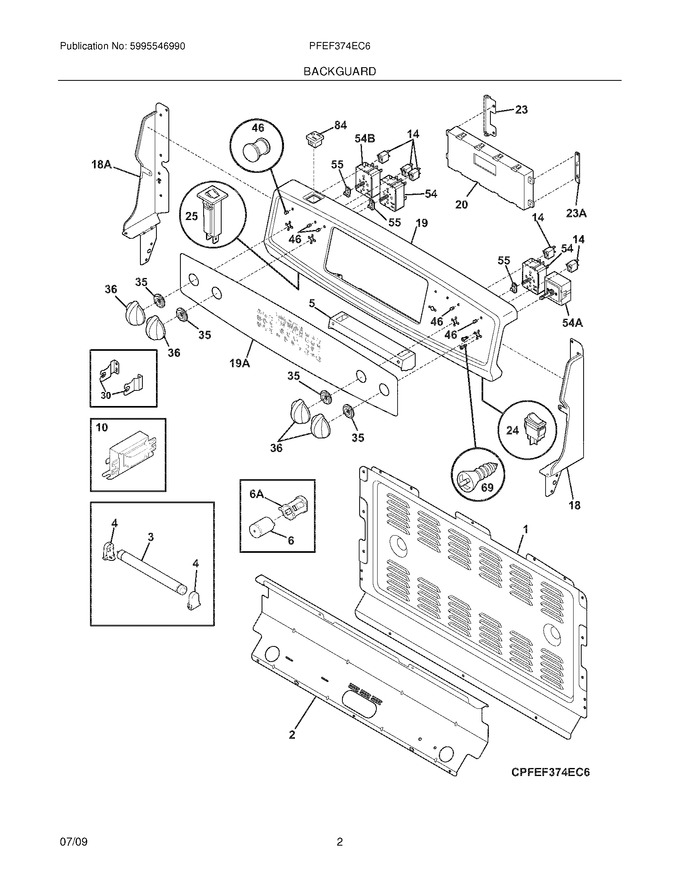

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Backguard
05 - Body
07 - Top/drawer
09 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318314100 | Panel,cover ,upper |
|
$ 60.32 | |||||
| 2 | 318288213 | Shield,inner ,black |
|
- | |||||
| 3 | 5304448825 | Lamp,fluorescent ,backguard |
|
$ 28.19 | |||||
| 4 | 318323401 | Receptacle,lamp ,rh/lh |
|
$ 5.58 | |||||
| 5 | 318288000 | Housing,light |
|
$ 9.19 | |||||
| 14 | 316022500 | Light/lamp, Indicator, 125 V |
|
Immediately | $ 53.57 | ||||
| 18 | 318287906 | End Cap,backsplash ,black ,rh |
|
- | |||||
| 19 | 318411223 | Panel-control,black |
|
- | |||||
| 23 | 318308500 | Bracket,control ,lh |
|
$ 59.33 | |||||
| 25 | 318324202 | Breaker,black ,(2) |
|
$ 22.94 | |||||
| 30 | 318316900 | Bracket,cooktop Mtg ,(2) |
|
- | |||||
| 35 | 318335402 | Support,retainer ,black ,(4) |
|
$ 4.04 | |||||
| 36 | 318197621 | Knob,control ,black |
|
$ 4.73 | |||||
| 46 | 318228310 | Lens,indicator Light ,(2) |
|
Immediately | $ 22.91 | ||||
| 55 | 318402901 | Bushing,switch |
|
$ 17.72 | |||||
| 69 | 5303288565 | Screw,8-32 X 3/16 ,(4) (Replaces: 5303323134) |
|
$ 3.12 | |||||
| 84 | 318146832 | Outlet,electrical ,black ,combined |
|
- | |||||
| 18A | 318287907 | End Cap,backsplash ,black ,lh |
|
- | |||||
| 19A | 318322915 | Panel,glass Assembly ,black ,w/membrane (Replaces: 318322908) |
|
$ 298.10 | |||||
| 23A | 318308600 | Bracket,control ,rh |
|
$ 3.89 | |||||
| 6A | 318110400 | Receptacle,starter |
|
$ 52.29 | |||||
| F10 | 318122805 | Ballast,lamp |
|
$ 38.48 | |||||
| F20 | 316418561 | Clock/timer,electronic ,es350 |
|
$ 219.29 | |||||
| F24 | 5304527841 | Switch-rocker,black (Replaces: 316005602) |
|
Immediately | $ 11.38 | ||||
| F54 | 318293818 | Switch,surface Element ,small (Replaces: 318293803) |
|
Immediately | $ 90.30 | ||||
| F54A | 318191024 | Switch,infinite ,dual (Replaces: 318191028) |
|
Immediately | $ 92.38 | ||||
| F54B | 318293814 | Switch,surface Element ,large |
|
Immediately | $ 93.29 | ||||
| F6 | 5304448826 | Starter,lamp |
|
$ 13.49 | |||||
| FNI | 318340991 | Harness,wiring ,backguard |
|
- | |||||
| NI | 08016432 | Screw,truss Head,8-18 X 0.375 |
|
- | |||||
| NI | 5303323137 | Screw,8-32 X 1/4 (Replaces: 5303305528) |
|
$ 11.88 | |||||
| NI | 318232103 | Harness,wiring ,light ,flourecent |
|
- | |||||
| NI | 318163602 | Cleaner,stainless Steel |
|
$ 26.51 |
