SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer


09 - Door

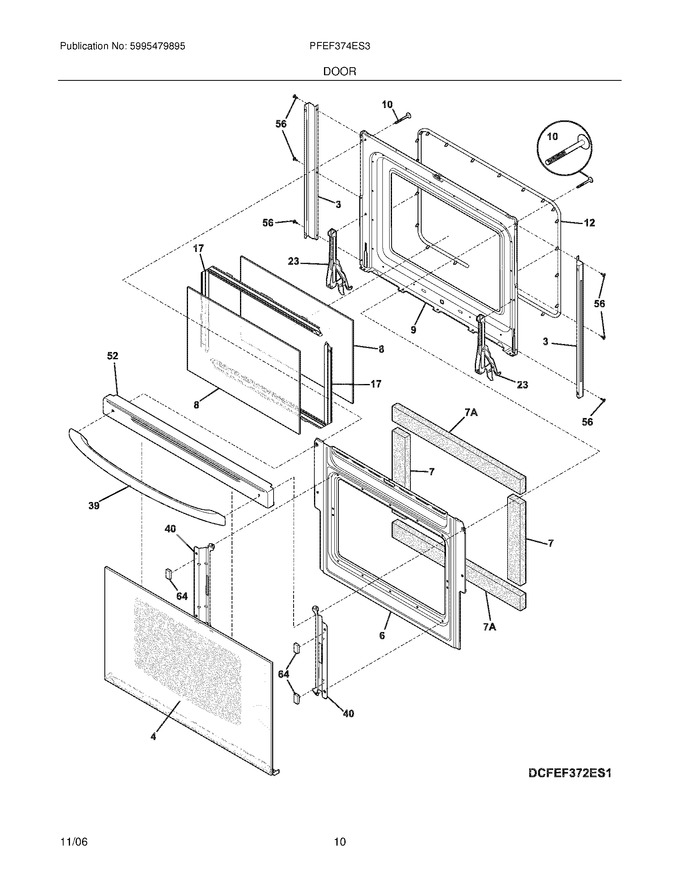

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318301401		Trim,oven Door ,white				$ 27.72
4	318304107		Door Assembly,glass ,white ,w/trim		Appelez-nous	-
6	318260520		Baffle,door		Appelez-nous	-
7	318372017		Insulation,door ,(2)   (Replaces: 318372000)				$ 16.30
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117500)				$ 116.95
9	318259601		Liner,oven Door ,upper				$ 99.12
10	5304453593		Screw,handle Mtg.				$ 10.53
12	318053120		Seal,oven Door ,upper   (Replaces: 318053130)			Immediately	$ 159.62
17	5304504811		Spacer,door Glass ,(2)   (Replaces: 316402403)			Immediately	$ 25.02
23	318024724		Hinge,door ,(2)		Appelez-nous	-
39	316270201		Handle,door ,white			Immediately	$ 128.29
40	318382302		Bracket,glass Holder ,(2)   (Replaces: 318242700)				$ 50.81
52	318304200		Trim,door ,white ,upper		Appelez-nous	-
56	5304436875		Screw,8-18 X 1/2,black				$ 14.41
56	5304448821		Screw,8-18 X 1/2 ,white ,(6)		Appelez-nous	-
64	318165800		Spacer				$ 17.72
7A	318372016		Insulation,door ,(2)   (Replaces: 318372002)				$ 17.72

    View Diagram in Separate Window       Print Part List
