SELECT A DIAGRAM

01 - Base


02 - Base (series 19)


03 - Cabinet


04 - Cabinet (series 16)

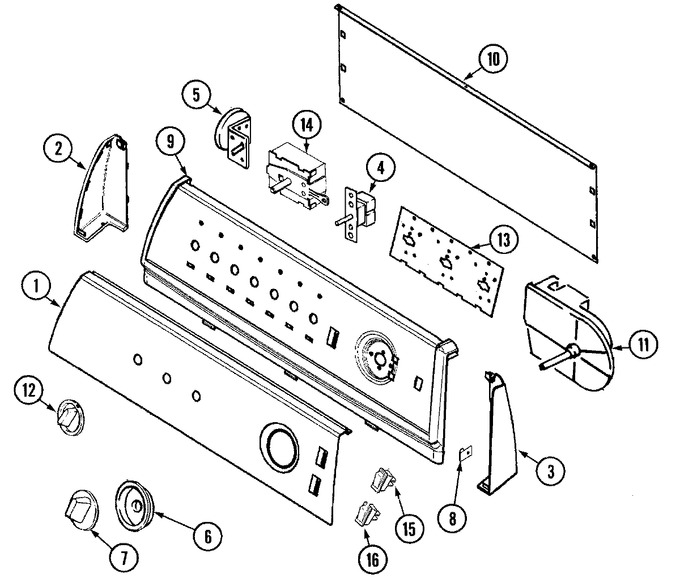

05 - Control Panel


06 - Top


07 - Transmission


08 - Transmission (series 17)


09 - Tub


10 - Wiring Information


11 - Wiring Information (series 20)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	21001731		Panel, Control	10	Appelez-nous	-
2	21001519		Endcap (wht-lt)	10	Appelez-nous	-
2	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
3	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
3	21001523		Endcap (wht-rt)	10	Appelez-nous	-
4	21001226		Switch, Water Temp. 4 Position	10	Appelez-nous	-
4	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
5	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
5	WP21001554		Switch, Water Level   (Replaces: 21001554)	10			$ 143.59
5	21001882		Switch, Pressure (emz)	20	Appelez-nous	-
6	21001600		Skirt, Timer (wht)	10			$ 88.84
7	WP21001972		Knob, Timer (wht)   (Replaces: 21001594)	10			$ 48.17
8	25-7851		Speedclip, End Cap To Top	10	Appelez-nous	-
9	21001745		Frame (wht)	10	Appelez-nous	-
10	21001527		Shield, Rear (back Panel)	10	Appelez-nous	-
10	25-7853		Retaining Ring	10	Appelez-nous	-
10	WP12990527		Screw, Sems   (Replaces: 25-3457)	10		Immediately	$ 7.15
10	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
11	21001595		Timer	10			$ 199.33
11	21001490		Sleeve, Vinyl (aust)	10	Appelez-nous	-
11	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
12	21001525		Knob, Selector (wht)	10	Appelez-nous	-
13	31001193		Pad, Shield	10	Appelez-nous	-
13	53-2504		Spacer, Control Shield	10	Appelez-nous	-
14	21001227		Switch, Speed 4 Pos Rotary	10	Appelez-nous	-
15	21001714		Switch, Rocker (wht)	10	Appelez-nous	-
17	21001718		Manual, Use & Care (trilingual	10	Appelez-nous	-
18	21001805		Harness, Wire	10	Appelez-nous	-
18	21001947		Harness, Wiring	20	Appelez-nous	-
21	12002417		Wire Kit (herrin Laundry)	10			$ 26.25

    View Diagram in Separate Window       Print Part List
