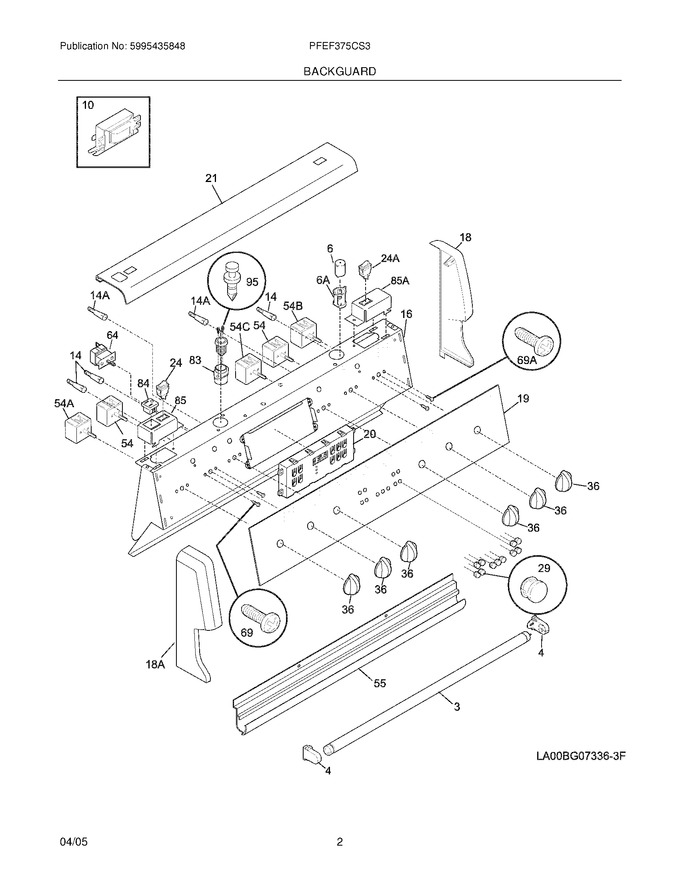

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303324517		Lamp,flourescent ,backguard		Appelez-nous	-
4	318110300		Receptacle-lamp,rh/lh				$ 11.82
6	5308068062		Starter,lamp				$ 30.46
16	318117565		Plate,instrument Mtg		Appelez-nous	-
18	318118800		End Cap,white ,rh		Appelez-nous	-
19	318001179		Panel,control ,glass ,white		Appelez-nous	-
21	318190011		Trim,canopy ,white		Appelez-nous	-
29	318017820		Knob,clock ,white ,(9)				$ 2.52
36	318197620		Knob,control ,white		Appelez-nous	-
55	318118720		Trim,backsplash ,white ,bottom				$ 33.05
69	5303288565		Screw,8-32 X 0.188   (Replaces: 5303323134)				$ 3.12
85	318171710		Support,outlet/switch		Appelez-nous	-
95	5303324521		Clip,fuse Holder Mtg		Appelez-nous	-
18A	318118801		End Cap,white ,lh		Appelez-nous	-
69A	5304401837		Screw,8-32 X 5/16		Appelez-nous	-
6A	318110400		Receptacle,starter				$ 52.29
85A	318171711		Support,switch		Appelez-nous	-
F10	318122803		Ballast,lamp		Appelez-nous	-
F14	318044824		Light,indicator ,250v ,(2)		Appelez-nous	-
F14A	318044823		Light,indicator ,125v ,(1)		Appelez-nous	-
F20	318184410		Clock/timer,controler ,es300			Immediately	$ 324.45
F24	318037513		Switch,rocker ,white ,oven Light				$ 62.11
F24A	318037503		Switch,rocker ,white ,flourescent				$ 7.77
F54	318293813		Switch,surface Unit ,small   (Replaces: 318220063)			Immediately	$ 82.66
F54A	318293814		Switch,surface Unit ,large   (Replaces: 318220064)			Immediately	$ 93.29
F54B	903097-9040		Switch,infinite ,dual   (Replaces: 318191001)			Immediately	$ 90.83
F54C	318078800		Switch,warmer ,drawer/zone				$ 163.01
F64	318163201		Switch,rotary				$ 29.19
F83	318115601		Fuse,15 Amp ,w/fuse Holder				$ 33.86
F84	318146820		Outlet,electrical ,white-glossy ,combined		Appelez-nous	-
NI	154079601		Nut,keps ,10-24   (Replaces: 3201885)				$ 0.41
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
