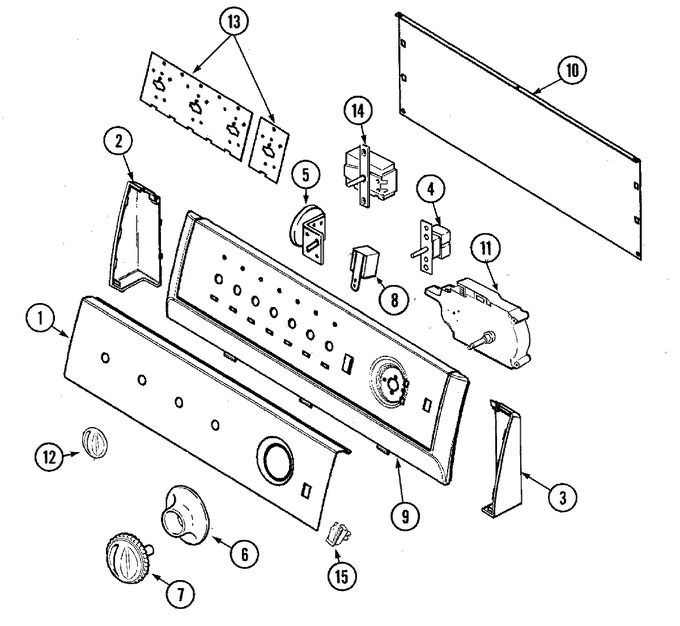

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	21001864		Panel, Control (wht)	10	Appelez-nous	-
2	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
2	21001519		Endcap (wht-lt)	10	Appelez-nous	-
3	21001523		Endcap (wht-rt)	10	Appelez-nous	-
3	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
4	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
4	21001852		Switch, Temperature (6 Pos.)	10			$ 86.19
5	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
5	21001882		Switch, Pressure (emz)	20	Appelez-nous	-
5	WP21001554		Switch, Water Level   (Replaces: 21001554)	10			$ 143.59
6	21001600		Skirt, Timer (wht)	10			$ 88.84
7	WP21001972		Knob, Timer (wht)   (Replaces: 21001594)	10			$ 48.17
8	31001397		Buzzer	10	Appelez-nous	-
9	21001745		Frame (wht)	10	Appelez-nous	-
10	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
10	WP12990527		Screw, Sems   (Replaces: 25-3457)	10		Immediately	$ 7.15
10	21001527		Shield, Rear (back Panel)	10	Appelez-nous	-
11	21001595		Timer	10			$ 199.33
11	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
12	21001525		Knob, Selector (wht)	10	Appelez-nous	-
13	21001517		Shield, Control (1 Pos.)	10			$ 4.83
13	21001603		Shield, Control (3 Pos.)	10	Appelez-nous	-
14	21001227		Switch, Speed 4 Pos Rotary	10	Appelez-nous	-
15	21001813		Switch, Rocker (wht)	10	Appelez-nous	-
17	21001863		Manual, Use & Care	10	Appelez-nous	-
18	22003218		Laundering Tips (trilingual)	10	Appelez-nous	-
19	21001853		Harness, Wire	10	Appelez-nous	-
19	21001860		Guide, Energy	10	Appelez-nous	-
19	21001949		Harness, Wiring	20	Appelez-nous	-
